Drywell Temperature Calibrator, 9144 Series, Field Metrology Well, -196 to 660 Degrees C MPN:9144-DW-156
Free Shipping
In Stock

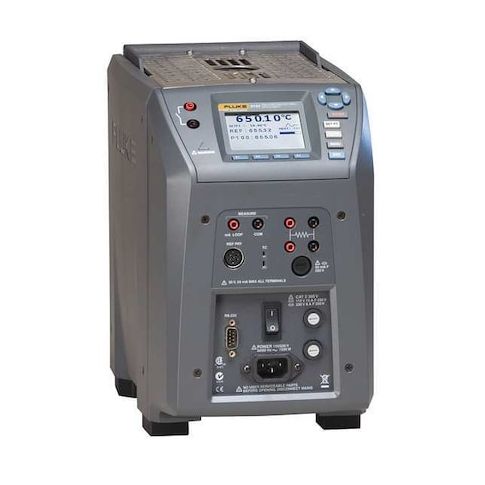

The Fluke 9144 Drywell Field Metrology Well is a versatile and reliable temperature calibration solution for a wide range of applications. This plug-in drywell is designed for use in field calibration, offering a temperature range of -196 to 660°C, as well as a secondary range of 0 to 1,480°C. Its variable set points and RS-232 interface make it easy to integrate with existing calibration systems. With NVLAP-accredited calibration included, users can trust the accuracy of their temperature measurements. Ideal for industries such as aerospace, automotive, and manufacturing, this drywell provides precise temperature control and calibration for critical applications.
Top product features:
- Calibration Details NVLAP Accredited Calibration Included
- Interface RS-232
- Variable number of set points
Top product applications:
- Temperature calibration of dry wells
- Field metrology and calibration of temperature measuring instruments
- High-temperature testing of materials and equipment
The FLUKE 9144-DW-156 is a field metrology well drywell temperature calibrator for field testing in industrial process environments. It is used to generate and measure temperature for calibration work with thermocouple sensors, with an adjustable set point style, variable set points, and a single well design. This unit features an LCD display with 0.01 degree resolution, temperature accuracy of +/-0.05 degrees C, and includes NVLAP accredited calibration documentation.
Key Features of the FLUKE 9144-DW-156 Drywell:
- Temperature Range: 0 to 1,480 degrees C listed, with calibrator accuracy stated at 50 degrees C, 420 degrees C, and 660 degrees C.
- Accuracy: Temperature accuracy is +/-0.05 degrees C
- calibrator accuracy is +/-0.35 degrees C at 50 degrees C and 420 degrees C, and +/-0.5 degrees C at 660 degrees C.
- Stability: Rated at +/-0.03 degrees C at 50 degrees C, +/-0.04 degrees C at 420 degrees C, and +/-0.05 degrees C at 660 degrees C.
- Display: LCD display with 0.01 degree resolution for temperature readings.
- Well Configuration: Single well with 5.91 in well depth
- supports stem diameters of (2) 3 mm, (2) 4 mm, and (2) 6 mm.
- Heating and Cooling Times: Typical heating time is 15 minutes from 50 degrees C to 660 degrees C
- typical cooling time is 25 minutes from 660 degrees C to 100 degrees C and 35 minutes from 660 degrees C to 50 degrees C.
- Interface and Power: RS-232 interface
- power input options are 100 to 115V and 230V.
- Included Items: Supplied with power cord, RS-232 cable, user guide, technical manual CD, report of calibration, calibration label, tongs, and 9930 Interface-it software with user's guide.
- Physical Size: Overall dimensions are 11 13/32 in H x 7 5/16 in W x 11 39/64 in D
- unit weight is 17 lb.
- Agency Compliance: CE, CSA, C-TICK, ROHS, and WEEE.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 45 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.87
- Package Width: 12.99
- Package Height: 3.94
- Package Weight: 19.89
