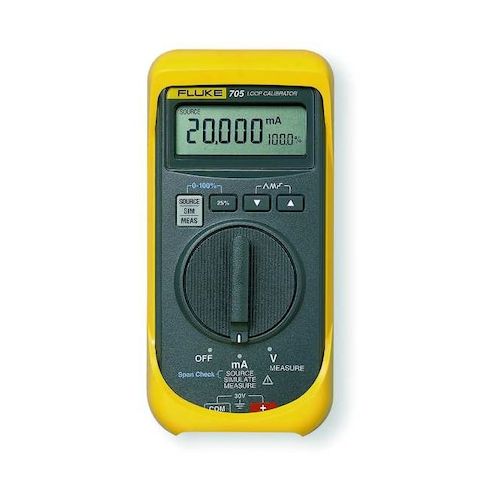

Process Calibrator, Current and Voltage MPN:Fluke-705
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8101737
Process Calibrator, Current and Voltage
The Fluke Process Calibrator is a versatile tool for current and voltage measurements in industrial settings. It calibrates and sources current from 0 to 20mA DC and measures up to 24mA DC, with high accuracy of 0.02%. It also measures voltage from 0 to 28V DC with an accuracy of 0.025%. This calibrator is ideal for loop calibration and troubleshooting in process control systems, power plants, and industrial automation. Its compact design and LCD display make it easy to use, while its CSA and EN certifications ensure reliable measurements. It's powered by a 9V battery and comes with safety-designed test leads.
Top product features:
- Measures source current from 0 to 20mA DC
- Measures current from 0 to 24mA DC with 0.02 Percent + 2 LSD accuracy
- Displays measured voltage and current on an LCD display
Top product applications:
- Loop calibration for industrial process control systems
- Field measurement and verification of current and voltage in industrial applications
- Troubleshooting and commissioning of electrical systems in commercial and industrial settings
Loop Calibrator, Source Current 0 to 20mA DC, Current Measurement Range 0 to 24mA DC, Current Accuracy 0.02 Percent + 2 LSD, Voltage Measurement Range 0 to 28V DC, Voltage Accuracy 0.025 Percent Reading + 2 LSD, Loop Supply Voltage 28 V DC, Max. Loop Current 24mA DC, Display LCD, Standards CSA C22.2 No. 1010.1:1992, EN50082-1:1992, EN55022:1994, Calibration Certificate NIST, Powered By 9V Battery, Includes (2) TL75 Safety-Designed Test Leads, AC70A Alligator Clips
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.60
- Package Width: 5.90
- Package Height: 3.30
- Package Weight: 2.00
Product info last updated on February 13, 2026 3:40pm UTC
Category: Process Monitoring
