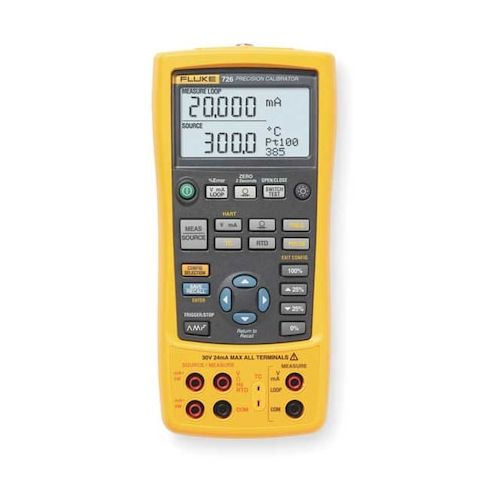

Multifunction Process Calibrator, 726 Series, 0 to 24 mA DC, 0 to 30V DC MPN:FLUKE-726
Free Shipping
In Stock
The Fluke Multifunction Calibrator is a versatile and reliable tool for precise voltage and current measurements in various industrial applications. With a measurement range of 0 to 30V DC and 0 to 24mA DC, it's ideal for calibrating and testing process instruments, sensors, and transmitters. Its intrinsic safety feature ensures safe operation in hazardous environments. The calibrator also features thermocouple and RTD temperature measurement capabilities, making it suitable for temperature control and monitoring applications. Its compact design and long battery life make it easy to use in the field, reducing downtime and increasing productivity.
Top product features:
- Voltage Measurement Range 0 to 30V DC
- Thermocouple Temperature Range -250 Degrees to 2500 Degrees C
- Source Current 0.001 to 24mA DC
Top product applications:
- Field calibration of industrial control systems
- Process control and monitoring in manufacturing facilities
- Instrument calibration in laboratories and research settings
The FLUKE-726 is a multifunction process calibrator used to measure and source multiple common process signals, including DC current, DC voltage, frequency, resistance, pressure, RTD, and thermocouple inputs. It supports HART communication and a 24 V loop supply, making it suitable for troubleshooting, calibration, and verification of process instrumentation. The unit uses a multiline backlit LCD and is powered by four AA alkaline batteries.
Key Features of the FLUKE-726 Multifunction Calibrator:
- Basic DC Accuracy: ±0.01% + 2 mV for precise DC measurement performance.
- Measurement Functions: Measures F, mA, Ohms, P, T, and V, covering current, voltage, frequency, pressure, resistance, and temperature-related signals.
- Current Capability: Measures 0 to 24 mA DC and sources 0.001 to 24 mA DC.
- Voltage Capability: Measures 0 to 30 V DC and sources 0 to 20 V DC.
- Frequency Range: Measures and sources 1 Hz to 15.0 kHz, with 2 to 1000 CPM support.
- Resistance Range: Measures 5 to 4000 ohms and sources 0 to 4000 ohms.
- Temperature Inputs: Supports RTD types Cu10, Ni120, Pt100, Pt1000, Pt200, and Pt500 variants, plus thermocouple types B, BP, E, J, K, L, N, R, S, T, U, and XK.
- Pressure Support: Works with 29 pressure modules, with displayed units including bar, kPa, mbar, psi, in Hg, mm Hg, and others.
- Loop Functions: Includes 24 V loop supply with maximum loop current of 22 mA DC.
- Display and Power: Multiline LCD with backlight
- powered by four AA alkaline batteries, with batteries included.
- Included Accessories: Supplied with alligator clips, stackable test leads, and test leads.
- Calibration Certificate: NIST calibration certificate included.
Additional Information
- Country of Origin: MY
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.20
- Package Width: 7.80
- Package Height: 3.30
- Package Weight: 3.50
