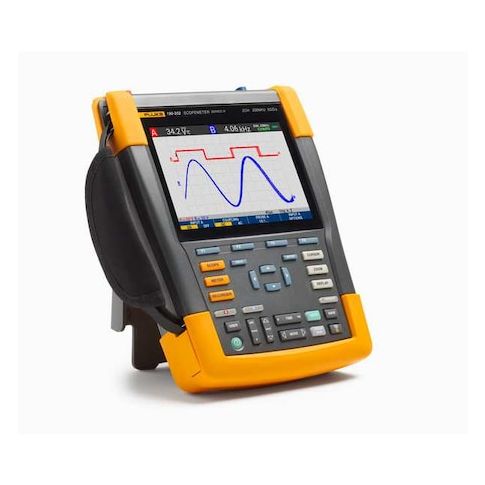

Handheld Digital Oscilloscope, 190 Series III ScopeMeter, 2 Channel, 200 MHz, True RMS MPN:FLUKE-190-202-III-S
Free Shipping
In Stock
Capture and analyze complex signals with the Fluke Digital Oscilloscope, featuring a 200 MHz bandwidth and 2 channels for precise measurement and waveform analysis. The full-color LCD display and True RMS capability ensure accurate readings, while the 125 MS/s sampling rate and 2 nsec/div to 4 sec/div sweep speed enable detailed examination of signal patterns. Ideal for engineering, research, and quality control applications, this oscilloscope also features FFT analysis, real-time clock, and date and time stamping for enhanced data analysis and record-keeping. Perfect for capturing and replaying waveforms, diagnosing issues, and optimizing system performance.
Top product features:
- Full Color LCD Display
- True RMS measurement capability
- Sampling Rate of 125 MS/s
Top product applications:
- Education and Research
- Electronics Testing and Debugging
- Medical Device Development and Testing
FLUKE-190-202-III-S is a handheld digital oscilloscope with 2 channels, 200 MHz bandwidth, and a full-color LCD display. It is designed for electrical signal measurement and analysis, with fully isolated channels, True RMS voltage measurement, FFT analysis, glitch capture, and built-in recording functions for reviewing waveform activity over time. The unit operates on a rechargeable lithium-ion battery and supports USB connectivity for data transfer.
Key Features of the FLUKE-190-202-III-S Digital Oscilloscope:
- Bandwidth and channels: 200 MHz bandwidth with 2 channels for viewing and comparing multiple signals.
- Voltage measurement range: Measures AC and DC voltage from 500 mV up to 1,100 V, with True RMS AC magnitude calculation.
- Accuracy: Basic AC voltage accuracy of plus minus(1% +10 counts) and basic DC voltage accuracy of plus minus(0.50% +6 counts).
- Sampling and recording: 125 MS/s sampling rate, up to 5 GS/s high-speed sampling, 10,000 points per trace waveform capture, and 30,000 data points per channel memory depth.
- Time base: Sweep speed from 2 nsec/div to 4 sec/div for capturing both fast and slower signal changes.
- Display: Full-color LCD with a 5.2 in x 3.5 in screen area.
- Analysis functions: Includes FFT analysis, glitch capture, ScopeRecord™, TrendPlot™, persistence modes, and automatic capture and replay of 100 screens.
- Isolation and safety rating: Fully isolated channel source design with CAT III 1000V and CAT IV 600V ratings.
- Power and interface: Rechargeable Li-Ion battery powered, with up to 3.5 hr battery run time and USB interface.
- Included accessories: Supplied with VPS410-II probes, TRM50 cable terminators, AC power adapter, USB cable, Wi-Fi dongle, carrying case, power cord, hand strap, and hanging strap.
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 7.60
- Package Height: 15.10
- Package Weight: 16.05
