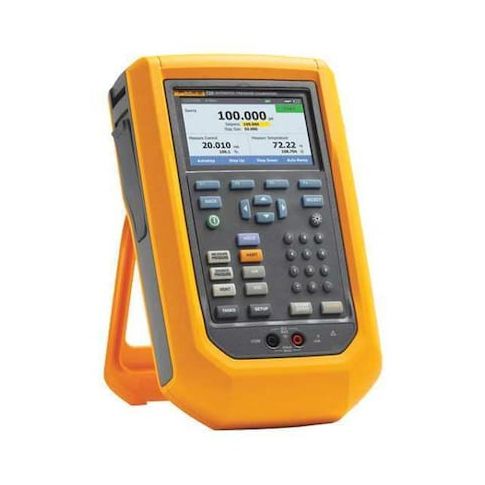

Automatic Pressure Calibrator, 729 Series, HART, 0 to 150 psi, USB, LCD MPN:FLK-729 150GFC/WWG
Free Shipping
In Stock
The Automatic Pressure Calibrator from Fluke is a versatile tool for accurate pressure measurement and calibration. This device features an internal electric pump pressure source, allowing for precise control over pressure levels. With a measurement range of 0 to 150 psi and the ability to connect external modules for higher pressure ranges, this calibrator is suitable for a variety of applications, including HVAC, oil and gas, and industrial process control. Its compact design and easy-to-use interface make it an ideal choice for professionals who need reliable and efficient pressure measurement and calibration.
Top product features:
- Automatic Electric Pump Pressure Source
- Internally Generated Pressure Range 0 to 150 psi
- Multiline LCD Display
Top product applications:
- Pressure calibration for industrial equipment
- Calibration of pressure sensors in laboratory settings
- Field calibration of pressure transmitters in oil and gas applications
The FLUKE FLK-729 150GFC/WWG is an automatic pressure calibrator for measuring and sourcing pressure and electrical signals in process calibration work. It features an internal electric pump with an internally generated pressure range of 0 to 150 psi, measures pressure from -12 to 150 psi, and supports external 750P Series pressure modules for ranges from -15 psi to 10,000 psi. This unit also measures and sources 0 to 24 mA DC, measures 0 to 30 V DC, supports HART communication, and works with Pt100 (385) RTD temperature inputs from -50 to 150 degrees C.
Key Features of the FLUKE FLK-729 150GFC/WWG Automatic Pressure Calibrator:
- Pressure capability: Internal pressure generation from 0 to 150 psi with pressure measurement from -12 to 150 psi.
- Pressure accuracy: Pressure accuracy rated at plus minus0.02% full scale.
- External module support: Compatible with 750P Series pressure modules across 50 ranges, extending coverage from -15 psi to 10,000 psi.
- Electrical measurement and source functions: Measures and sources 0 to 24 mA DC and measures 0 to 30 V DC.
- Additional measured parameters: Measures AC current, DC current, DC voltage, pressure, and RTD.
- Display and interface: Multiline LCD display with USB interface.
- Pressure units: Displays pressure in multiple units including psi, bar, kPa, mbar, Pa, atm, in Hg, and water column units.
- Loop supply: Provides 24 V DC loop supply.
- Communication: HART protocol support.
- Construction and power: IP54 rated and powered by an included 14.5 V lithium battery.
- Included accessories: Supplied with AC175 alligator clips, AC280 Sure Grip hook set, stackable test leads, TP220 test probes, and USB cable.
- Calibration documentation: Includes a traceable with data calibration certificate, traceable to the International System of Units (SI).
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.70
- Package Width: 11.00
- Package Height: 9.00
- Package Weight: 13.60
