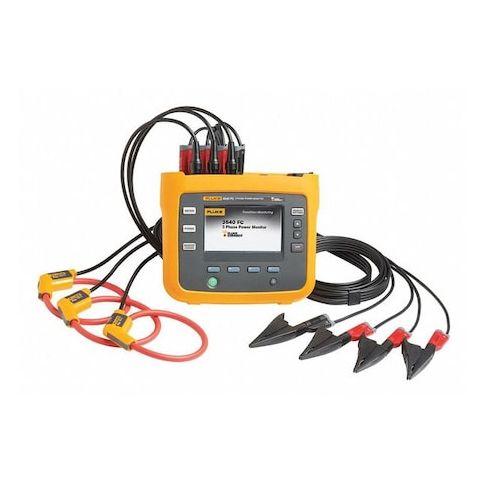

Power/Condition Monitor Kit, 3540 FC, 3 Phase, 1, 000A AC, 1000V AC, Data Logging MPN:FLUKE 3540 FC KIT

• The FLUKE 3540 FC KIT is a 3-phase power/condition monitor for measuring and logging electrical power data on single-, split-, and three-phase systems. It supports current, voltage, power, and power factor monitoring, with data logging, peak capture, harmonic capture, and wireless or USB-A communication for viewing and transferring recorded information. The kit includes the leads, clamps, adapters, software, and accessories needed for setup and measurement.

  Key Features of the FLUKE 3540 FC KIT Power/Condition Monitor:


  • Phase Compatibility: Works with single, split, and three-phase systems.
  • 3-Phase Configuration: Built as a 3-phase power/condition monitor with 3 current channels and 4 voltage channels.
  • Measurement Capacity: Measures up to 1,000 A AC and 1000 V AC, with kit current capability up to 1,500 A.
  • Accuracy: Current accuracy is +/-0.1%
  • voltage accuracy is +/-10%.
  • Power Measurements: Supports power factor from -1 to 1, maximum apparent power of 1,000 TVA, and maximum watts of 1.56 GW.
  • Logging and Capture: Data logging is included, along with peak capture and harmonic capture from 1.5 to 49.5th.
  • Sampling and Response: 10.24 kHz sampling rate, 7 kHz AC response, calibration frequency range of 42.5 to 69 Hz, and crest factor less than 4.
  • Display and Storage: Color LCD touch screen with 480 x 272 resolution and 2 GB storage.
  • Connectivity: USB-A and Wi-Fi communication protocols.
  • Rating: IP50
  • CAT III 1000V, CAT IV 600V.
  • Included Accessories: Includes (2) test lead sets, (3) current clamps, (4) alligator clips, cable assembly, cable marker set, line cord, magnetic hanger kit, software, voltage test lead, and wireless nano adapter.
  • Operating Temperature Range: 32 to 113 degrees F.
