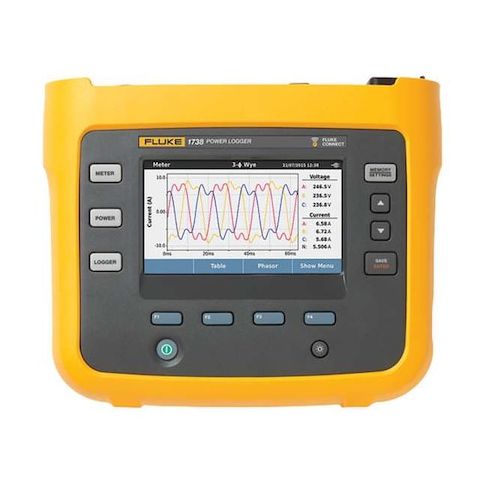

Power Logger Kit, 1738/EUS, 3-Phase, 4 Current Probes, 1, 500 A MPN:FLUKE-1738/EUS/WWG
Free Shipping
In Stock
The Fluke Pwr Quality Anlyzr Kit is a comprehensive power quality analysis solution, ideal for electrical contractors, engineers, and technicians who require precise measurements of power quality parameters. With four 1500A flexible current probes and four alligator clips, this kit allows for simultaneous measurement of up to four single-phase or three-phase circuits, providing a detailed analysis of voltage, current, and power factor. The kit's Bluetooth, USB-A, USB-Mini, and Wi-Fi connectivity enable seamless data transfer and analysis. Suitable for a wide range of applications, including industrial, commercial, and residential electrical systems, this kit ensures accurate power quality analysis and compliance with regulatory standards.
Top product features:
- Includes four 1500 A flexible current probes for measuring high currents
- Captures power quality data with four voltage channels and four current channels
- Measures maximum AC current up to 6,000 A and power factor up to 1
Top product applications:
- Power monitoring and analysis in industrial settings
- Electrical system troubleshooting and fault diagnosis
- Research and development of power quality issues in electrical engineering
The FLUKE FLUKE-1738/EUS/WWG Power Quality Analyzer Kit is a power logger kit for measuring and recording electrical parameters on single-phase, split-phase, and three-phase systems. It supports 4 current channels and 4 voltage channels, with data logging, harmonic capture, and a color LCD touch screen for viewing measurements. This kit is used for power monitoring and analysis where current, voltage, power, and related electrical values need to be captured and reviewed.
Key Features of the FLUKE FLUKE-1738/EUS/WWG Power Quality Analyzer Kit:
- 4 current probes included: Includes (4) 1500 A flexible current probes for multi-channel current measurement.
- Multi-phase capability: Works with single, split, and three-phase systems.
- Measurement capacity: Maximum AC current measured up to 6,000 A and maximum AC voltage up to 1000 V.
- Accuracy: Current accuracy is ±1% and voltage accuracy is ±0.2%.
- Display: Color LCD touch screen with 480 x 272 resolution.
- Data logging and storage: Built-in data logging with 2 GB storage.
- Connectivity: Bluetooth, USB-A, USB-Mini, and Wi‑Fi communication protocols.
- Sampling and response: 10.24 kHz sampling rate and 5 kHz AC response.
- Power measurements: Power factor range from -1 to 1, with maximum VA of 1,000 TVA and maximum watts of 1,000 TW.
- Operating range: 14 to 122 degrees F operating temperature range.
- Protection and rating: IP50 rated, with CAT III 1000V and CAT IV 600V safety ratings.
- Included accessories: Comes with (3) line cords, (4) alligator clips, color coding set, magnetic hanging strap, soft case, and voltage test leads.
- Calibration: Calibration certificate included
- calibration frequency 42.5 to 69 Hz.
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.80
- Package Width: 11.60
- Package Height: 9.60
- Package Weight: 10.80
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
