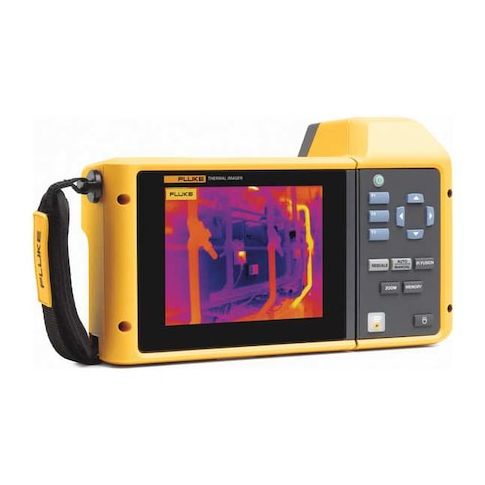

Infrared Thermal Camera, Expert Series, 640 x 480 IR Resolution, 5.7 in LCD, -4 to 1472 Degrees F MPN:FLK-TIX580
Free Shipping
In Stock
Capture thermal images and temperatures with precision using the Fluke infrared camera. This rugged device is designed for industrial and diagnostic use, with a temperature range of -4°F to 1472°F and a thermal sensitivity of 50 mK. The 5.7-inch color LCD display provides a clear view of images and temperatures, while the 9 Hz or 60 Hz frame rate allows for smooth video capture. Use it to detect temperature anomalies, troubleshoot equipment, and inspect electrical and mechanical systems. The camera's wireless data transfer and adjustable emissivity settings make it a valuable tool for a variety of applications, including predictive maintenance and quality control.
Top product features:
- Displays temperature readings from -4 Degrees to 1472 Degrees F
- Captures high and low temperature alerts
- Displays images at a resolution of 5 MP
Top product applications:
- Thermal imaging for industrial maintenance and repair
- Building inspection and diagnostics
- Research and development in materials science and engineering
The FLUKE FLK-TIX580 is a handheld infrared camera for capturing thermal images across a temperature range of -4 to 1472 degrees F (-20 to 800 degrees C). It combines 640 x 480 infrared resolution, 50 mK thermal sensitivity, and a 5.7 in color LCD touchscreen display to support thermal inspection, troubleshooting, and temperature monitoring. The camera also includes alarms with digital display and sound alerts, data logging, wireless data transfer, and both auto and manual focus options.
Key Features of the FLUKE FLK-TIX580 Infrared Camera:
- Temperature range: Measures from -4 to 1472 degrees F (-20 to 800 degrees C).
- Thermal sensitivity: 50 mK for detecting small temperature differences.
- Infrared resolution: 640 x 480 pixels for detailed thermal imaging.
- Display: 5.7 in color LCD touchscreen with 640 x 480 display resolution.
- Focus system: Auto and manual focus with a focus range from 0.15 m to infinity.
- Articulating lens and rotating screen: Includes an articulating lens and a 240 degree rotating screen for viewing from different angles.
- Field of view: 34 degrees horizontal x 24 degrees vertical.
- Alerts and alarms: High and low temperature alerts with digital display and sound indication.
- Emissivity: Adjustable from 0.01 to 1.00.
- Data handling: Supports data logging, wireless transfer, SD card, and USB connectivity.
- Image features: Includes image notation, image sketching, Picture in Picture, and text or voice notation.
- Included accessories: Supplied with batteries, battery charger, Bluetooth headset, hard carrying case, HDMI video cable, straps, power supply, universal AC adapter, and USB cable.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 7.90
- Package Height: 14.60
- Package Weight: 14.00
