Thermal Imager, TiS75+ Series, 384 x 288 IR Resolution, 27 Hz, -4 Degrees to 1022 Degrees F MPN:FLK-TIS75+ 27HZ
Free Shipping
In Stock
Capture thermal signatures with unparalleled precision using the Fluke thermal camera. This rugged device is designed for a wide range of applications, from industrial inspections to electrical maintenance. With a temperature range of -4°F to 1022°F and a thermal sensitivity of 40 mK, it can detect even the slightest temperature variations. The 640x480 display and 3.5-inch LCD touchscreen provide a clear and intuitive viewing experience. Additionally, the camera's adjustable emissivity settings and 5MP visual light resolution allow for accurate measurements in various environments. Perfect for HVAC technicians, electrical engineers, and maintenance professionals.
Top product features:
- Thermal imaging with a temperature range of -4 Degrees to 1022 Degrees F.
- Captures thermal images at a frame rate of 9 Hz.
- Displays images with a resolution of 640 x 480 on a 3.5 in LCD screen.
Top product applications:
- Industrial Maintenance
- Facilities Management
- Quality Control

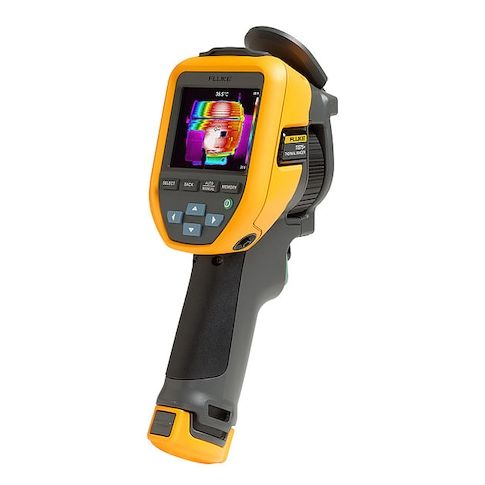

The FLUKE FLK-TIS75+ 27HZ is a handheld thermal camera for capturing infrared images across a temperature range of -4 degrees to 1022 degrees F. It combines thermal imaging with visible light imaging and supports picture-in-picture viewing, making it useful for identifying and documenting temperature differences during inspection and troubleshooting work. The camera includes wireless data transfer, voice image notation, and a 3.5 in LCD touchscreen for image review and operation.
Key Features of the FLUKE FLK-TIS75+ 27HZ Thermal Camera:
- Temperature Range: Measures from -4 degrees to 1022 degrees F (-20 degrees to 550 degrees C).
- Thermal Sensitivity: 40 mK sensitivity supports detection of small temperature differences.
- Infrared Resolution: 384 x 288 infrared resolution for thermal image capture.
- Display: 3.5 in LCD touchscreen with 640 x 480 display resolution.
- Frame Rate: 27 Hz infrared frame rate.
- Focus and Optics: Manual focus with a minimum focus distance of 0.15 m and 42 degrees x 30 degrees field of view.
- Imaging Features: Thermal and visible light blending, picture-in-picture, 5 MP visual light resolution, and single-dot laser sighting.
- Emissivity Adjustment: Adjustable emissivity from 0.01 to 1.
- Data and Storage: Wireless interface and transfer, with support for BMP, GIF, IS2, JPEG, PNG, and TIFF file formats plus a 4GB MicroSD removable memory card.
- Power: Includes 1 lithium-ion battery, charger, and two-bay battery charger
- battery run time is 3.5 hours.
- Alerts and Functions: Audible and digital display alarms, plus dew-point calculation.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 8.60
- Package Height: 11.20
- Package Weight: 7.70
