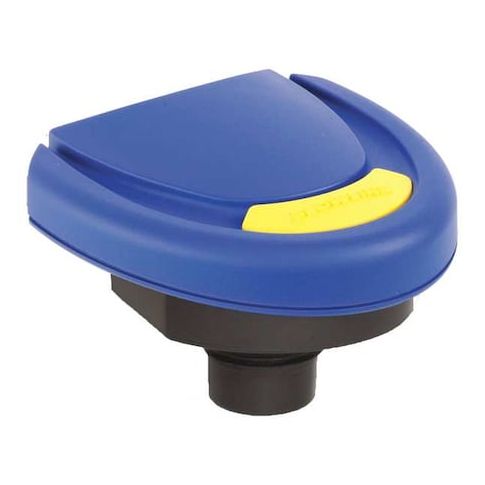

Ultrasonic Level Transmitter, 9.8 Ft MPN:LU27-01
Ultrasonic Level Transmitter, 9.8 Ft
Monitor liquid levels in corrosive, sticky, or waste environments with this reliable ultrasonic level transmitter. Suitable for use in a wide range of applications, including chemical processing, wastewater treatment, and industrial manufacturing. The transmitter's non-contact design ensures accurate measurements without coming into contact with the media, reducing maintenance and increasing lifespan. With a high spatial resolution and narrow beam width, this transmitter provides precise level measurements. Its compact design and ease of installation make it an ideal solution for applications where space is limited. Ideal for use in temperatures from -4°F to 140°F and pressures up to 30 psi.
Top product features:
- Noncontact ultrasonic level sensor for measuring liquid levels without physical contact
- Measures corrosive, sticky, or waste liquids with high accuracy of +/-0.2 percent of range
- Operates at frequencies of 100 kHz with a spatial resolution of 0.019 inches and a beam width of 2 inches
Top product applications:
- Monitoring oil levels in storage tanks
- Measuring water levels in wastewater treatment systems
- Tracking liquid levels in chemical processing plants
Noncontact Ultrasonic Level Sensor, For Media Type Corrosive Liquid, Sticky/Waste Liquid, Antenna Diameter 1 3/8 in, Range 117.6 in, Connection Size 1 in, Connection Type NPT, Accuracy +/-0.2 Percent of Range, Voltage - Maximum 24V DC, Dead Band 4 in, Operating Frequency 100 kHz, Spatial Resolution 0.019 in, Beam Width 2 in, Operating Pressure - Maximum 30 psi, Media Temperature - Minimum -4 Degrees F, Media Temperature - Maximum 140 Degrees F, Output Wire Configuration 2-Wire
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.40
- Package Width: 6.60
- Package Height: 5.30
- Package Weight: 1.35
Product info last updated on February 3, 2026 3:55pm UTC
Category: Pump Controls
