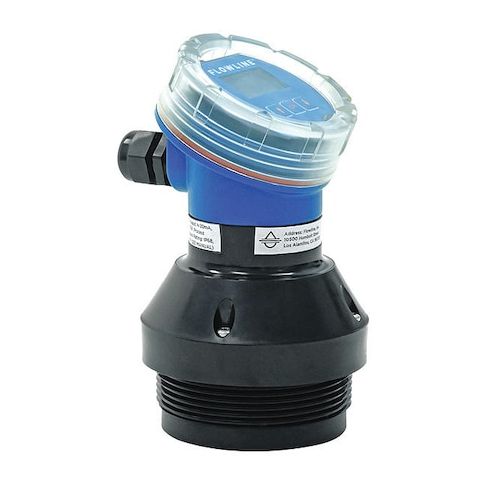

Reflective Ultrasonic Level Sensor, PVDF MPN:UG12-0011-01
Reflective Ultrasonic Level Sensor, PVDF
This Reflective Ultrasonic Level Sensor from Flowline accurately measures liquid levels in a wide range of applications, including chemical, oil, wastewater, and water processing. Its durable PVDF construction withstands harsh environments and temperatures from -40 to 176°F. The sensor offers ±0.2% accuracy, 50 kHz operating frequency, and 6-inch beam width. Suitable for use in chemical plants, refineries, wastewater treatment facilities, and water utilities, this sensor provides reliable level monitoring and can be easily integrated into existing systems. Its 2-wire output and compact design make it a versatile and efficient solution for various industrial applications.
Top product features:
- Reflective ultrasonic technology allows for accurate measurement of liquid levels
- Measures a range of 471.6 inches with an accuracy of +/-0.2 percent of range
- Operates in temperatures from -40 to 176 degrees Fahrenheit and pressures up to 30 psi
Top product applications:
- Level measurement in chemical processing tanks
- Level measurement in wastewater treatment facilities
- Level measurement in oil storage tanks
Reflective Ultrasonic Level Sensor, For Media Type Chemicals, Oil, Wastewater, Water, Antenna Diameter 3 1/2 in, Range 471.6 in, Connection Size 3 in, Connection Type NPT, Accuracy +/-0.2 Percent of Range, Voltage - Maximum 28V DC, Dead Band 18 in, Operating Frequency 50 kHz, Spatial Resolution 0.196 in, Beam Width 6 in, Operating Pressure - Maximum 30 psi, Media Temperature - Minimum -40 Degrees F, Media Temperature - Maximum 176 Degrees F, Output Wire Configuration 2-Wire
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.40
- Package Width: 6.70
- Package Height: 5.30
- Package Weight: 2.30
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on February 7, 2026 1:30pm UTC
Category: Industrial Electrical Controls and Automation
