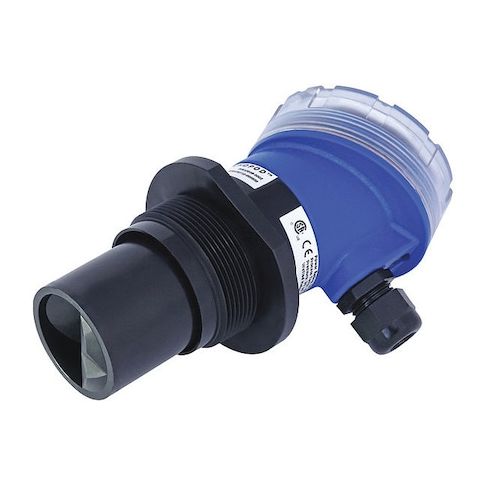

Reflective Ultrasonic Level Sensor, PVDF MPN:UG06-0011-00
Reflective Ultrasonic Level Sensor, PVDF
Monitor liquid levels with precision and accuracy using the Reflective Ultrasonic Level Sensor from Flowline. Suitable for measuring chemicals, oil, wastewater, and water, this sensor provides reliable readings in a wide range of operating conditions. Its high accuracy of +/- 0.2% of range ensures precise level detection, while its 2-wire output configuration simplifies integration into existing systems. Ideal for use in industrial settings, such as refineries, wastewater treatment plants, and chemical processing facilities, this sensor offers a reliable solution for level monitoring applications. Its durable design and wide temperature range make it a versatile choice for various applications.
Top product features:
- Reflective ultrasonic technology allows for accurate measurement of liquid levels
- Measures a range of 235.2 inches with +/-0.2 percent accuracy
- Operates at a frequency of 50 kHz with a spatial resolution of 0.079 inches
Top product applications:
- Chemical level measurement in industrial processes
- Oil level monitoring in storage tanks
- Wastewater level detection in treatment plants
Reflective Ultrasonic Level Sensor, For Media Type Chemicals, Oil, Wastewater, Water, Antenna Diameter 2 3/8 in, Range 235.2 in, Connection Size 2 in, Connection Type NPT, Accuracy +/-0.2 Percent of Range, Voltage - Maximum 28V DC, Dead Band 8 in, Operating Frequency 50 kHz, Spatial Resolution 0.079 in, Beam Width 3 in, Operating Pressure - Maximum 30 psi, Media Temperature - Minimum -40 Degrees F, Media Temperature - Maximum 176 Degrees F, Output Wire Configuration 2-Wire
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.40
- Package Width: 6.60
- Package Height: 5.30
- Package Weight: 1.75
