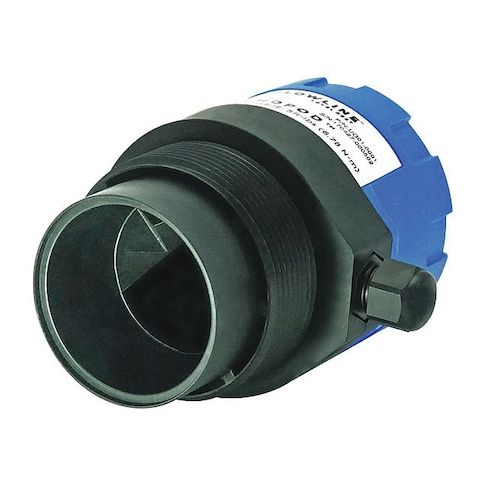

Reflective Ultrasonic Level Sensor, PVDF MPN:UG01-0011-41
Reflective Ultrasonic Level Sensor, PVDF
Monitor liquid levels with precision using the Reflective Ultrasonic Level Sensor from Flowline. This rugged sensor is designed for use in harsh environments, handling chemicals, oil, wastewater, and water with ease. Its high accuracy and spatial resolution provide reliable measurements, even in challenging conditions. With a wide operating temperature range and pressure capabilities, this sensor is ideal for industrial applications, such as oil and gas, wastewater treatment, and chemical processing. Its compact design and easy installation make it a valuable addition to any level monitoring system, ensuring safe and efficient operations.
Top product features:
- Reflective ultrasonic technology allows for accurate level measurement in a variety of media types, including chemicals, oil, wastewater, and water.
- The sensor has a spatial resolution of 0.019 in, enabling precise measurement and detection of changes in liquid levels.
- The sensor operates at 80 kHz, providing a narrow beam width of 2 in and reducing interference from surrounding objects.
Top product applications:
- Level Monitoring in Chemical Processing Plants
- Monitoring Liquid Levels in Oil Storage Tanks
- Measuring Wastewater Levels in Industrial Treatment Systems
Reflective Ultrasonic Level Sensor, For Media Type Chemicals, Oil, Wastewater, Water, Antenna Diameter 2 3/8 in, Range 58.8 in, Connection Size 2 in, Connection Type NPT, Accuracy 3 mm, Voltage - Maximum 28V DC, Dead Band 1.5 in, Operating Frequency 80 kHz, Spatial Resolution 0.019 in, Beam Width 2 in, Operating Pressure - Maximum 30 psi, Media Temperature - Minimum -40 Degrees F, Media Temperature - Maximum 176 Degrees F, Output Wire Configuration 2-Wire, Output Voltage Range 4 to 20mA
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.30
- Package Width: 6.60
- Package Height: 5.30
- Package Weight: 1.50
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on February 26, 2026 6:11am UTC
Category: Industrial Electrical Controls and Automation
