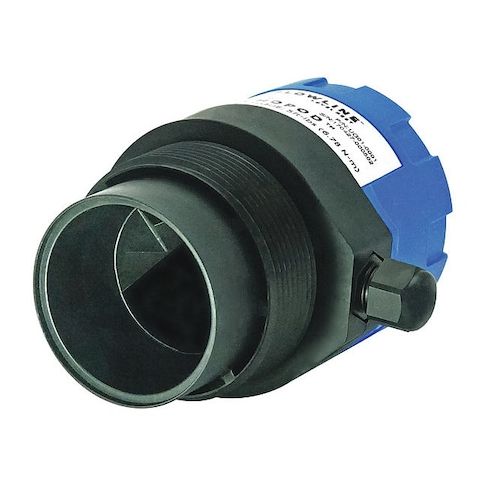

Reflective Ultrasonic Level Sensor, PVDF MPN:UG03-0011-40
Reflective Ultrasonic Level Sensor, PVDF
Monitor liquid levels in harsh chemical, oil, and wastewater environments with the Flowline Reflective Ultrasonic Level Sensor. This durable sensor offers high accuracy (+/-0.2% of range) and reliability in extreme temperatures (-40°F to 176°F) and pressures (up to 30 psi). Its 2-in connection and 2.375-in antenna diameter make it easy to integrate into existing systems. Ideal for use in chemical processing, oil and gas, and wastewater treatment facilities, this sensor provides precise level measurement and minimizes downtime. With its compact design and reliable performance, it's the perfect solution for demanding applications.
Top product features:
- Reflective ultrasonic technology measures liquid levels with high accuracy
- Operates over a wide range of temperatures, from -40 to 176 degrees Fahrenheit
- Provides precise measurements with a spatial resolution of 0.039 inches
Top product applications:
- Chemical Level Measurement
- Oil Level Monitoring
- Wastewater Level Detection
Reflective Ultrasonic Level Sensor, For Media Type Chemicals, Oil, Wastewater, Water, Antenna Diameter 2 3/8 in, Range 117.6 in, Connection Size 2 in, Connection Type NPT, Accuracy +/-0.2 Percent of Range, Voltage - Maximum 28V DC, Dead Band 4 in, Operating Frequency 80 kHz, Spatial Resolution 0.039 in, Beam Width 2 in, Operating Pressure - Maximum 30 psi, Media Temperature - Minimum -40 Degrees F, Media Temperature - Maximum 176 Degrees F, Output Wire Configuration 2-Wire
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.30
- Package Width: 6.60
- Package Height: 5.30
- Package Weight: 1.45
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
