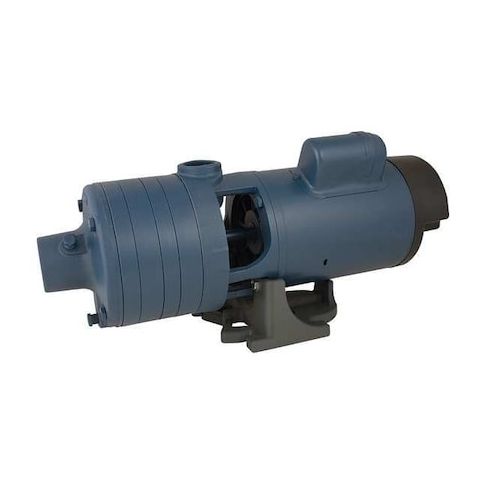

Booster Pump, 3/4 hp, 208 to 240/480V AC, 3 Phase, 1-1/2 in NPT Inlet Size, 2 Stage MPN:CJ101B073AB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8834427
Booster Pump, 3/4 hp, 208 to 240/480V AC, 3 Phase, 1-1/2 in NPT Inlet Size, 2 Stage
This 3/4 hp booster pump is designed for high-pressure applications, handling flows up to 34 gpm at 20 psi and 10 gpm at 50 psi. Built with a cast iron pump housing and open dripproof motor enclosure, it's suitable for a variety of industrial and commercial uses, including water treatment and distribution systems. Its compact size and horizontal mounting orientation make it ideal for installations in tight spaces. The pump's compatibility with 1.5 in NPT intake and 1.25 in discharge pipes ensures a seamless integration with existing systems, providing reliable and efficient operation.
Top product features:
- 2 Stage design for increased efficiency and flow rate
- Cast Iron Pump Housing for durability and resistance to corrosion
- Horizontal Mounting Orientation for easy installation and reduced footprint
Top product applications:
- Well Water Systems
- Water Treatment Plants
- Fire Protection Systems
Booster Pump, Phase Three, Pump Housing Material Cast Iron, Motor Enclosure Open Dripproof, Horsepower 3/4 hp, Nameplate Voltage 208-230/460V AC, Flow Rate @ 20 psi 34 gpm, Flow Rate @ 30 psi 30 gpm, Flow Rate @ 40 psi 23 gpm, Flow Rate @ 50 psi 10 gpm, Shut Off Pressure (Maximum) 54 psi, Compatible Intake Pipe Size 1 1/2 in, Compatible Discharge Pipe Size 1 1/4 in, Intake Type NPT, Mounting Orientation Horizontal, For Use With Potable Systems No, Amps 14/7 A, Case Pressure (Maximum) 160 psi
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 34.30
- Package Width: 11.50
- Package Height: 11.50
- Package Weight: 62.75
Product info last updated on February 11, 2026 9:19am UTC
Category: Centrifugal Pumps
