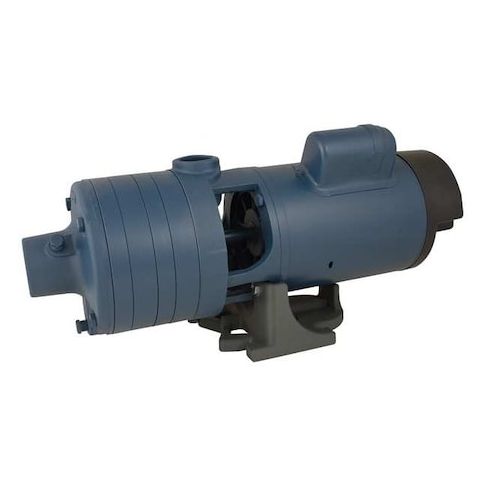

Booster Pump, 1 1/2 hp, 120/240V AC, 1 Phase, 1-1/2 in NPT Inlet Size, 2 Stage, 69 psi Max Pressure MPN:CJ101B151AB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6898717
Booster Pump, 1 1/2 hp, 120/240V AC, 1 Phase, 1-1/2 in NPT Inlet Size, 2 Stage, 69 psi Max Pressure
This 1.5 hp booster pump is designed for use in a variety of applications, including municipal water systems, irrigation, and industrial processes. The pump's two-stage design provides efficient pressure boosting and flow rates of up to 45 gpm at 20 psi. With a maximum pressure of 69 psi, it can handle high-pressure systems with ease. The pump's cast iron housing and open dripproof motor enclosure ensure durability and reliability. Its compact size and horizontal mounting orientation make it ideal for installation in tight spaces. Perfect for use in non-potable systems, this booster pump is a reliable solution for your pressure boosting needs.
Top product features:
- 1 1/2 hp motor for increased pumping capacity
- Two-stage design for efficient pressure boost
- Maximum pressure rating of 69 psi for reliable system operation
Top product applications:
- Water Pressure Boosting Systems
- Well Water Systems
- Commercial or Industrial Water Supply Systems
Booster Pump, Phase Single, Pump Housing Material Cast Iron, Motor Enclosure Open Dripproof, Horsepower 1 1/2 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 20 psi 45 gpm, Flow Rate @ 30 psi 40 gpm, Flow Rate @ 40 psi 35 gpm, Flow Rate @ 50 psi 28 gpm, Flow Rate @ 60 psi 19 gpm, Shut Off Pressure (Maximum) 69 psi, Compatible Intake Pipe Size 1 1/2 in, Compatible Discharge Pipe Size 1 1/4 in, Intake Type NPT, Mounting Orientation Horizontal, For Use With Potable Systems No, Amps 21/10.5 A
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 33.50
- Package Width: 11.40
- Package Height: 11.40
- Package Weight: 73.80
Product info last updated on February 12, 2026 12:50pm UTC
Category: Centrifugal Pumps
