Booster Pump, 5 hp, 240V AC, 1 Phase, 3 in NPT Inlet Size, 2 Stage, 86 psi Max Pressure MPN:C22251
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6459074

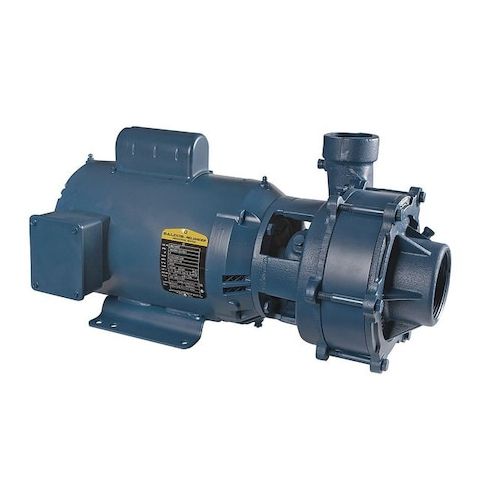

Booster Pump, 5 hp, 240V AC, 1 Phase, 3 in NPT Inlet Size, 2 Stage, 86 psi Max Pressure
The FLINT and WALLING 5 hp booster pump is a reliable and efficient solution for pressurizing water systems. Ideal for residential, commercial, and industrial applications, this 2-stage pump can handle flows up to 146 gpm at 10 psi and pressures up to 86 psi. Its cast iron housing and open dripproof motor enclosure ensure durability and protection from the elements. With a compact design and easy-to-use NPT connections, this pump is perfect for applications such as boosting water pressure in homes, buildings, and irrigation systems, or for pressurizing water supplies in remote areas.
Top product features:
- Boosts pressure up to 86 psi
- Operates at 5 hp with 230V AC single-phase power
- Delivers varying flow rates at different pressures, including 146 gpm at 10 psi and 91 gpm at 60 psi
Top product applications:
- Water treatment systems
- Industrial process water supply
- Fire protection systems
Booster Pump, Phase Single, Pump Housing Material Cast Iron, Motor Enclosure Open Dripproof, Horsepower 5 hp, Nameplate Voltage 230V AC, Flow Rate @ 10 psi 146 gpm, Flow Rate @ 20 psi 143 gpm, Flow Rate @ 30 psi 137 gpm, Flow Rate @ 40 psi 124 gpm, Flow Rate @ 50 psi 111 gpm, Flow Rate @ 60 psi 91 gpm, Flow Rate @ 70 psi 65 gpm, Flow Rate @ 80 psi Not Applicable, Shut Off Pressure (Maximum) 85 psi, Compatible Intake Pipe Size 3 in, Compatible Discharge Pipe Size 2 in, Intake Type NPT
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.30
- Package Width: 17.80
- Package Height: 14.60
- Package Weight: 125.00
Product info last updated on February 1, 2026 12:58pm UTC
Category: Centrifugal Pumps
