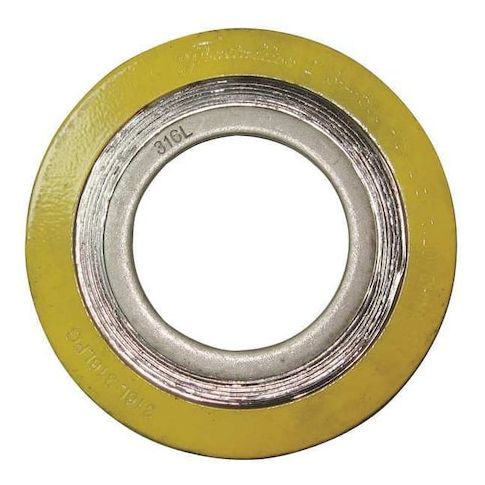

Spiral Wound Metal Gasket, 6 In, 316SS MPN:CGI
Spiral Wound Metal Gasket, 6 In, 316SS
Seal your most critical applications with Flexitallic's Spiral Wound Metal Gasket, designed for ANSI Class 150 flanges and 6-inch pipes. Built with a durable spiral wound construction, this gasket features a stainless steel grade 316L core, graphite filler, and a carbon steel outer ring. With a temperature range of -400°F to 842°F, it's ideal for high-pressure and high-temperature applications. Perfect for use in oil and gas, chemical processing, and power generation industries, this gasket ensures a tight seal, minimizing leaks and reducing maintenance costs. Its compact size and easy installation make it a reliable choice for demanding applications.
Top product features:
- Spiral winding material is made of stainless steel for corrosion resistance and durability.
- Graphite filler material provides a high level of sealing performance and resistance to extreme temperatures.
- The gasket is designed with a rim stripe color and outside rim color for easy identification and handling.
Top product applications:
- High-Temperature Industrial Process Equipment
- Oil and Gas Refining and Processing
- Chemical Plant Equipment and Piping
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 6 in, Inside Diameter 6 3/16 in, Outside Diameter 8 3/4 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Green, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 316L, Inner Ring Material Stainless Steel
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.60
- Package Width: 8.60
- Package Height: 0.30
- Package Weight: 0.80
Product info last updated on March 19, 2026 5:20pm UTC
Category: Sealing and Gasketing
