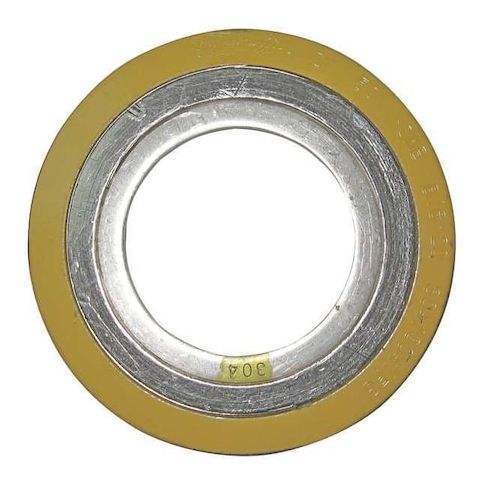

Spiral Wound Metal Gasket, 3/4 In, 304SS MPN:CGI
Spiral Wound Metal Gasket, 3/4 In, 304SS
This Spiral Wound Metal Gasket from Flexitallic is designed for use on flanges of ANSI Class 300, 400, and 600, accommodating 3/4 inch pipe sizes. Its graphite-filled design provides excellent sealing performance in extreme temperatures, ranging from -400°F to 842°F. Constructed with a carbon steel outer ring and stainless steel inner ring, this gasket is ideal for applications in the oil and gas, chemical processing, and power generation industries. Its durability and resistance to corrosion ensure reliable performance in high-pressure and high-temperature environments, making it a reliable choice for critical sealing applications.
Top product features:
- Spiral winding provides a tight seal around the flange.
- Graphite filler material allows for flexibility and resistance to compression set.
- Stainless steel construction with a minimum operating temperature of -400 Degrees F enables use in extreme low-temperature applications.
Top product applications:
- High-pressure chemical processing
- High-temperature power generation
- Nuclear power plant applications
Spiral Wound Flange Gasket, For Flange ANSI Class 300, 400, 600, For Pipe Size 3/4 in, Inside Diameter 13/16 in, Outside Diameter 2 5/8 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Yellow, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material Stainless Steel
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.60
- Package Height: 0.30
- Package Weight: 0.15
Product info last updated on February 3, 2026 6:32pm UTC
Category: Sealing and Gasketing
