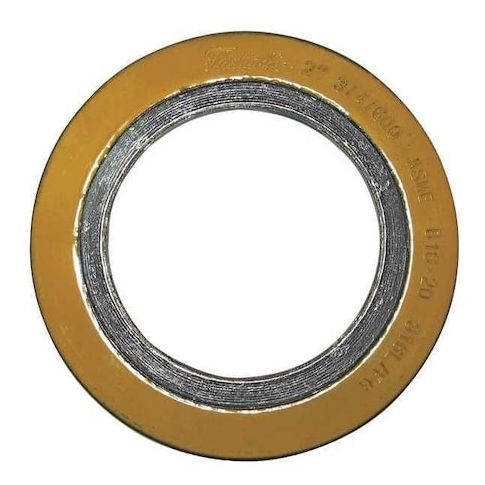

Spiral Wound Metal Gasket, 8 In, 316SS MPN:CG
Spiral Wound Metal Gasket, 8 In, 316SS
Protect your high-pressure applications with the Spiral Wound Metal Gasket from Flexitallic. Designed for use on ANSI Class 150 flanges, this gasket provides a reliable seal in extreme temperatures, from -400°F to 842°F. The 316SS spiral winding ensures durability and resistance to corrosion, while the graphite filler material provides a high-pressure seal. Suitable for use in chemical processing, oil and gas, and power generation industries, this gasket is a cost-effective solution for maintaining system integrity and preventing leaks. Its compact size and lightweight design also make it easy to handle and install in tight spaces.
Top product features:
- Spiral winding material is made of stainless steel grade 316L for corrosion resistance.
- The gasket has a minimum operating temperature of -400 Degrees F and a maximum operating temperature of 842 Degrees F.
- The gasket is designed with a graphite filler material for effective sealing.
Top product applications:
- High-Pressure Pipe Flanges
- Steam Power Plants
- Oil and Gas Refineries
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 8 in, Inside Diameter 9 3/16 in, Outside Diameter 11 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Green, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 316L, Inner Ring Material None
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 11.00
- Package Height: 0.20
- Package Weight: 0.60
Product info last updated on January 20, 2026 12:10am UTC
Category: Sealing and Gasketing
