Spiral Wound Metal Gasket, 1-1/2In, 304SS MPN:CGI

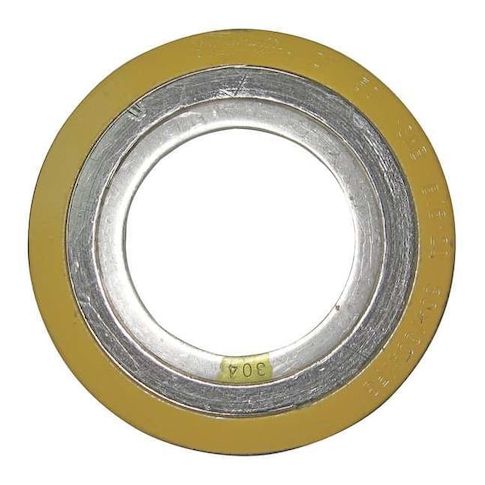

Spiral Wound Metal Gasket, 1-1/2In, 304SS
This Spiral Wound Metal Gasket is designed for use on ANSI Class 150 flanges, providing a reliable seal for pipe sizes up to 1 1/2 inches. Made with a durable graphite filler and stainless steel spiral winding, it can withstand extreme temperatures from -400°F to 842°F. The gasket's carbon steel outer ring and stainless steel inner ring ensure long-lasting performance. Suitable for use in high-pressure applications, such as oil and gas processing, chemical plants, and power generation, this gasket provides a secure and leak-free seal, minimizing downtime and maintenance costs.
Top product features:
- Spiral winding provides a strong and flexible gasket seal.
- Graphite filler material provides high temperature resistance and sealing performance.
- 304 Stainless Steel spiral winding and inner ring materials offer excellent corrosion resistance.
Top product applications:
- High-Pressure Industrial Pipe Connections
- High-Temperature Power Plant Equipment
- Chemical Processing Plant Pipe Fittings
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 1 1/2 in, Inside Diameter 1 3/4 in, Outside Diameter 3 3/8 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Yellow, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material Stainless Steel
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 3.40
- Package Height: 0.30
- Package Weight: 0.20
Product info last updated on February 3, 2026 10:31am UTC
Category: Sealing and Gasketing
