Spiral Wound Metal Gasket, 4 In, 316SS MPN:CGI

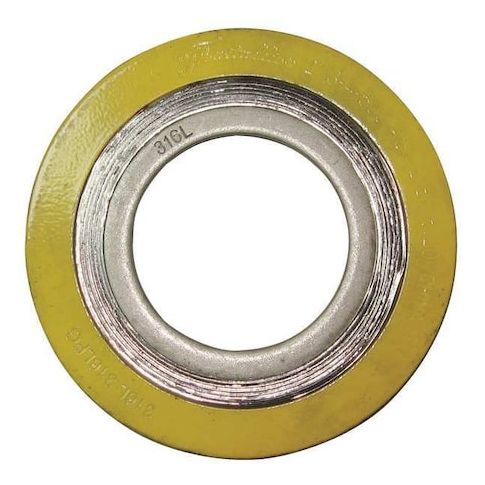

Spiral Wound Metal Gasket, 4 In, 316SS
For high-temperature and high-pressure applications, the Spiral Wound Metal Gasket from Flexitallic is a reliable choice. This 316SS gasket is designed for use with ANSI Class 150 flanges and can withstand temperatures from -400°F to 842°F. The spiral wound construction provides excellent sealing properties, while the graphite filler material enhances its performance. Suitable for use in chemical processing, power generation, and oil and gas industries, this gasket is a durable and long-lasting solution for maintaining a tight seal in critical systems. Its compact size and lightweight design make it easy to handle and install.
Top product features:
- Spiral winding material is Stainless Steel Grade 316L.
- Filled with graphite to provide sealing and insulation properties.
- Has a minimum operating temperature of -400 Degrees F and a maximum operating temperature of 842 Degrees F.
Top product applications:
- High-pressure steam boiler applications
- Chemical processing plant flanges
- Power plant condenser flanges
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 4 in, Inside Diameter 4 3/16 in, Outside Diameter 6 7/8 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Green, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 316L, Inner Ring Material Stainless Steel
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.80
- Package Width: 6.80
- Package Height: 0.30
- Package Weight: 0.70
Product info last updated on March 18, 2026 5:15pm UTC
Category: Sealing and Gasketing
