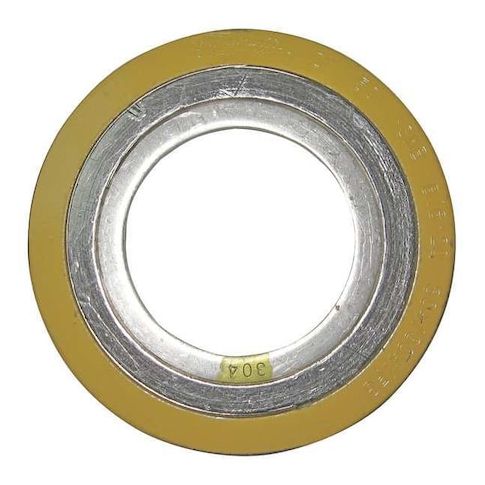

Spiral Wound Metal Gasket, 1-1/4In, 304SS MPN:CGI
Spiral Wound Metal Gasket, 1-1/4In, 304SS
Protect your critical applications with the Flexitallic Spiral Wound Metal Gasket, designed for use with ANSI Class 150 flanges and 1 1/4 in pipe sizes. Constructed with a stainless steel spiral winding and a carbon steel outer ring, this gasket provides exceptional durability and resistance to extreme temperatures, ranging from -400°F to 842°F. The graphite filler material ensures a secure seal, while the yellow outer rim and gray rim stripe provide visual identification. Ideal for use in industrial, chemical, and oil and gas applications, this gasket offers reliable performance and long-lasting protection against leaks and corrosion.
Top product features:
- Spiral winding material made from stainless steel for corrosion resistance and durability
- Graphite filler material provides a high level of sealing performance and resistance to chemical corrosion
- Thickness of 3/16 in provides a robust and durable design capable of withstanding high pressures and temperatures
Top product applications:
- High-Pressure Industrial Piping Systems
- Chemical Processing Plants
- Power Generation Facilities
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 1 1/4 in, Inside Diameter 1 1/2 in, Outside Diameter 3 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Yellow, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material Stainless Steel
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.00
- Package Height: 0.30
- Package Weight: 0.10
Product info last updated on February 16, 2026 6:24pm UTC
Category: Sealing and Gasketing
