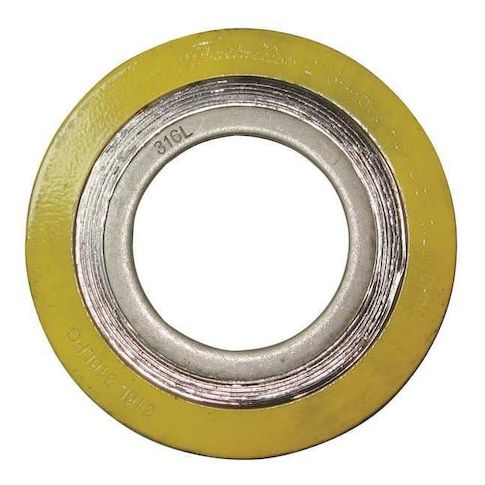

Spiral Wound Metal Gasket, 8 In, 316SS MPN:CGI
Spiral Wound Metal Gasket, 8 In, 316SS
The Flexitallic Spiral Wound Metal Gasket is a high-performance solution for demanding applications. Suitable for use in ANSI Class 150 flanges, this gasket provides exceptional sealing capabilities in extreme temperatures, from -400°F to 842°F. Constructed with a stainless steel spiral winding and carbon steel outer ring, it offers superior durability and resistance to corrosion. The graphite filler material ensures a tight seal, making it ideal for use in chemical processing, oil and gas, and power generation industries. With a lead time of just one day, this gasket is perfect for applications requiring rapid turnaround and high reliability.
Top product features:
- Spiral wound design provides a flexible seal for flanges in various operating conditions.
- Graphite filler material enhances the gasket's ability to withstand high temperatures and pressures.
- Stainless Steel Grade 316L spiral winding provides corrosion resistance in harsh environments.
Top product applications:
- High-temperature flange gasket for chemical processing
- Sealing flanges in high-pressure steam systems
- Flange gasket for high-temperature applications in the power generation industry
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 8 in, Inside Diameter 8 1/2 in, Outside Diameter 11 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Green, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 316L, Inner Ring Material Stainless Steel
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 11.00
- Package Height: 0.30
- Package Weight: 1.05
Product info last updated on February 15, 2026 10:32am UTC
Category: Sealing and Gasketing
