Spiral Wound Metal Gasket, 1-1/4In, 316SS MPN:CGI

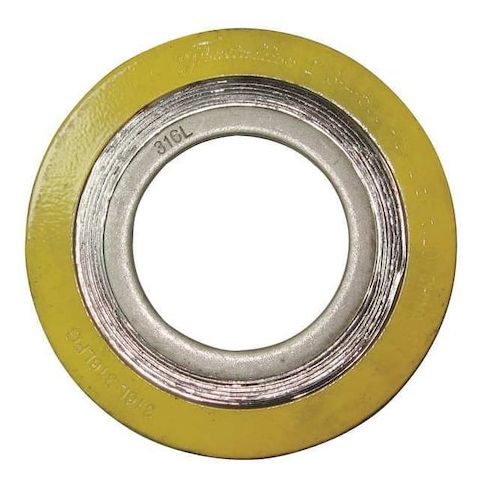

Spiral Wound Metal Gasket, 1-1/4In, 316SS
The Flexitallic Spiral Wound Metal Gasket is a high-performance solution for demanding industrial applications. Suitable for use in flanges of ANSI Class 300, 400, and 600, this gasket features a 316SS spiral winding and a carbon steel outer ring, ensuring excellent durability and resistance to extreme temperatures (-400°F to 842°F). The graphite filler material provides optimal sealing capabilities, making it ideal for use in high-pressure and high-temperature applications, such as oil and gas, chemical processing, and power generation. Its compact design and lightweight construction also make it suitable for use in a variety of industries, including pharmaceutical and food processing.
Top product features:
- Spiral winding material provides corrosion resistance up to 842 Degrees F.
- Graphite filler material facilitates sealing and gasket performance.
- Stainless Steel Grade 316L spiral winding material ensures compatibility with high-temperature applications.
Top product applications:
- High-Pressure Process Piping
- Industrial Power Generation Systems
- Chemical Processing Plants
Spiral Wound Flange Gasket, For Flange ANSI Class 300, 400, 600, For Pipe Size 1 1/4 in, Inside Diameter 1 1/2 in, Outside Diameter 3 1/4 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Green, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 316L, Inner Ring Material Stainless Steel
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 3.30
- Package Height: 0.30
- Package Weight: 0.15
Product info last updated on January 19, 2026 8:21pm UTC
Category: Sealing and Gasketing
