Spiral Wound Metal Gasket, 5 In, 316SS MPN:CG

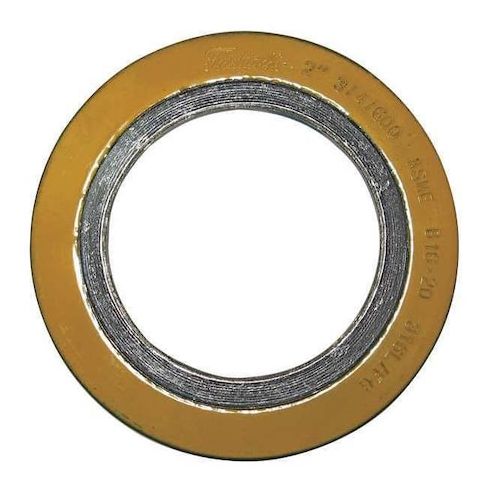

Spiral Wound Metal Gasket, 5 In, 316SS
The Flexitallic Spiral Wound Metal Gasket is a high-performance sealing solution designed for demanding industrial applications. Suitable for use with ANSI Class 150 flanges, this gasket provides a reliable and durable seal for pipes up to 5 inches in size. Constructed with a stainless steel spiral winding and graphite filler, it offers excellent resistance to extreme temperatures, from -400°F to 842°F. Its compact design and low weight make it ideal for use in a variety of industries, including oil and gas, chemical processing, and power generation, where reliable sealing is critical to safe and efficient operation.
Top product features:
- Spiral winding material provides high temperature resistance up to 842 Degrees F.
- The gasket is designed for use with ANSI Class 150 flanges, ensuring compatibility with standard flange connections.
- The graphite filler material provides a high level of sealing performance in a variety of applications.
Top product applications:
- High-Pressure Piping Systems
- High-Temperature Process Equipment
- Power Generation and Nuclear Power Plants
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 5 in, Inside Diameter 6 1/8 in, Outside Diameter 7 3/4 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Green, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 316L, Inner Ring Material None
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.60
- Package Width: 7.60
- Package Height: 0.30
- Package Weight: 0.50
Product info last updated on March 1, 2026 3:07am UTC
Category: Sealing and Gasketing
