Spiral Wound Metal Gasket, 5 In, 316SS MPN:CG

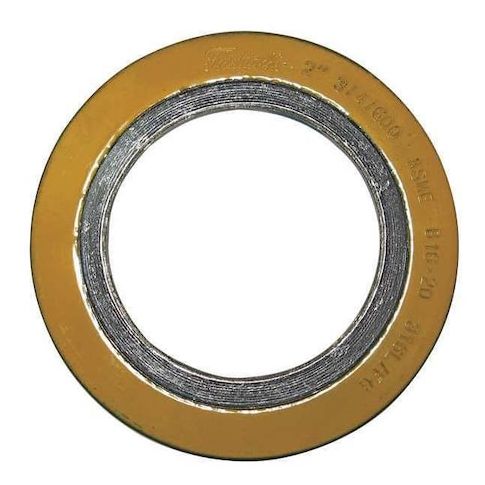

Spiral Wound Metal Gasket, 5 In, 316SS
The Flexitallic Spiral Wound Metal Gasket is a high-performance sealing solution for industrial applications. Designed for use on ANSI Class 300 flanges, this gasket provides a reliable and durable seal for pipes up to 5 inches in size. Constructed with a 316SS spiral winding and graphite filler material, it offers excellent resistance to high temperatures (-400°F to 842°F) and corrosive substances. Ideal for use in chemical processing, oil and gas, and power generation industries, this gasket ensures maximum safety and efficiency in critical applications. Its compact design and ease of installation make it a convenient choice for maintenance and repair operations.
Top product features:
- Spiral winding provides a flexible seal around the flange.
- The gasket is designed for use on ANSI Class 300 flanges.
- The gasket has a graphite filler material for improved sealing performance.
Top product applications:
- High-pressure chemical processing
- High-temperature industrial piping
- Severe service oil and gas applications
Spiral Wound Flange Gasket, For Flange ANSI Class 300, For Pipe Size 5 in, Inside Diameter 6 1/8 in, Outside Diameter 8 1/2 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Green, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 316L, Inner Ring Material None
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.50
- Package Width: 8.50
- Package Height: 0.30
- Package Weight: 0.80
Product info last updated on January 14, 2026 7:34pm UTC
Category: Sealing and Gasketing
