Spiral Wound Metal Gasket, 1 In, 316SS MPN:CGI

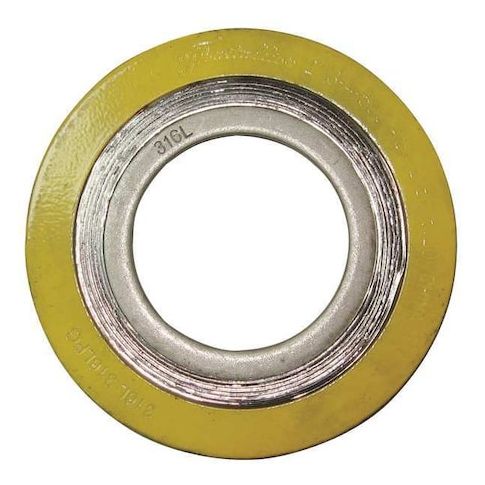

Spiral Wound Metal Gasket, 1 In, 316SS
Seal critical connections with Flexitallic's Spiral Wound Metal Gasket, designed for demanding applications in the oil and gas, chemical, and power industries. This 316SS gasket features a spiral wound design with stainless steel grade 316L for exceptional durability and resistance to corrosion. With a temperature range of -400°F to 842°F, it can withstand extreme conditions. Its graphite filler and carbon steel outer ring ensure a tight seal. Ideal for use in ANSI Class 150 flanges, this gasket is perfect for high-pressure applications, ensuring reliable performance and long product life.
Top product features:
- Spiral wound construction provides a flexible seal around the flange.
- Stainless steel grade 316L spiral winding offers high resistance to corrosion.
- Graphite filler material enhances the gasket's sealing performance in a wide temperature range.
Top product applications:
- High-Pressure Chemical Processing
- Oil and Gas Refining and Transportation
- Power Generation and Nuclear Plants
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 1 in, Inside Diameter 1 1/16 in, Outside Diameter 2 5/8 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Green, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 316L, Inner Ring Material Stainless Steel
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.60
- Package Height: 0.30
- Package Weight: 0.10
Product info last updated on March 1, 2026 1:24pm UTC
Category: Sealing and Gasketing
