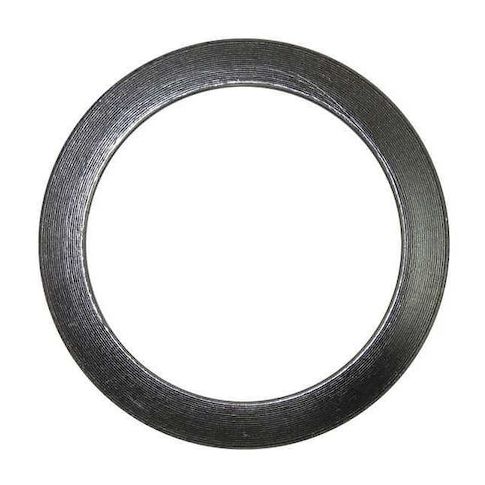

Metal Gasket, 1-53/64in. In, 2-31/64in Out MPN:00188700238
Metal Gasket, 1-53/64in. In, 2-31/64in Out
Experience unparalleled sealing performance with Flexitallic's Spiral Wound Flange Gasket, designed for demanding applications. Suitable for use in extreme temperatures ranging from -320°F to 842°F, this gasket withstands pressures up to 300 psi. The spiral winding material, made from high-quality stainless steel grade 304, ensures durability and resistance to corrosion. Perfect for industries such as oil and gas, chemical processing, and power generation, this gasket provides a reliable seal for flanges, valves, and other critical components. Its compact size and versatility make it an ideal solution for a wide range of applications, from maintenance to new equipment installation.
Top product features:
- Spiral winding provides a flexible seal that can accommodate flange movement and vibration.
- The gasket's inner ring is made of stainless steel grade 304, which offers high resistance to corrosion and chemical attack.
- The gasket can operate at temperatures ranging from -320 to 842 degrees Fahrenheit, making it suitable for extreme temperature applications.
Top product applications:
- Chemical Processing
- High-Temperature Steam Generation
- Power Plant Applications
Spiral Wound Flange Gasket, Inside Diameter 1 7/8 in, Outside Diameter 2 1/2 in, Thickness 1/8 in, Outer Ring Material Carbon Steel, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Stainless Steel Grade Not Applicable, Maximum Operating Pressure 300 psi, Standards None, System of Measurement Inch
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on February 11, 2026 11:48am UTC
Category: Sealing and Gasketing
