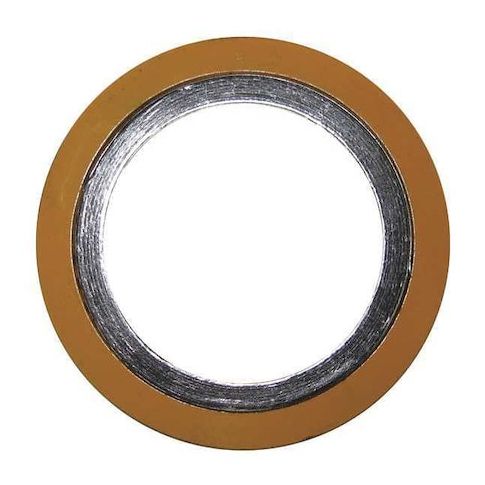

Metal Gasket, 3/4 in. In, 2-9/64 in. Out MPN:005030008
Metal Gasket, 3/4 in. In, 2-9/64 in. Out
This high-performance metal gasket is designed for demanding applications in the oil and gas, chemical, and power industries. With a spiral wound design and stainless steel winding, it provides exceptional sealing and durability in extreme temperatures, from -320°F to 842°F. The gasket is specifically designed for use on ANSI Class 300, 400, and 600 flanges, and is suitable for pipe sizes up to 1/2 inch. Its graphite filler and carbon steel outer ring ensure reliable performance and long-lasting service. Ideal for use in high-pressure and high-temperature applications, this gasket provides a reliable and cost-effective solution for critical sealing needs.
Top product features:
- Spiral winding provides a flexible seal around the flange.
- Graphite filler material enhances the gasket's sealing performance.
- Stainless steel spiral winding resists corrosion and maintains its shape under high temperatures.
Top product applications:
- High-temperature pipe connections
- Low-temperature pipe connections
- Heavy-duty industrial flange applications
Spiral Wound Flange Gasket, For Flange ANSI Class 300, 400, 600, For Pipe Size 1/2 in, Inside Diameter 3/4 in, Outside Diameter 2 3/16 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Yellow, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material None
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 3
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on February 18, 2026 7:06am UTC
Category: Sealing and Gasketing
