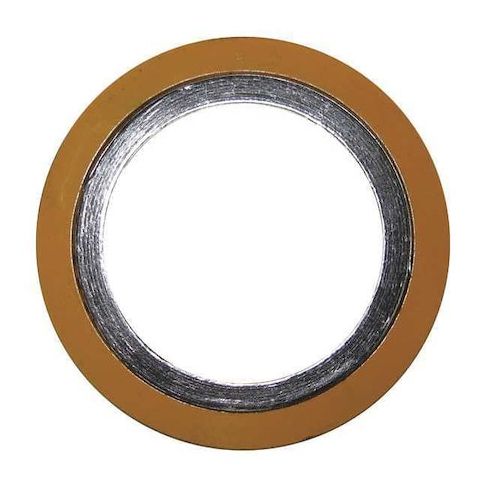

Metal Gasket, 1 in. In, 2-7/8 in. Out MPN:007090008
Metal Gasket, 1 in. In, 2-7/8 in. Out
This metal gasket from Flexitallic is a reliable solution for high-pressure applications. Designed for use with ANSI Class 900 flanges, it provides a secure seal for pipes up to 3/4 inch in size. The spiral wound design ensures durability and resistance to extreme temperatures, operating from -320°F to 842°F. The gasket's gray rim stripe and stainless steel spiral winding provide a long-lasting and corrosion-resistant seal. Suitable for use in a variety of industries, including oil and gas, chemical processing, and power generation, this gasket offers a reliable solution for maintaining system integrity and preventing leaks.
Top product features:
- Spiral Winding Material Stainless Steel for high temperature resistance
- Spiral Winding Stainless Steel Grade 304 for corrosion resistance
- Thickness 1/4 in for effective sealing and durability
Top product applications:
- High-Temperature Pipe Flange Gasket
- Pressure Vessel Gasket
- Steam Trap Gasket
Spiral Wound Flange Gasket, For Flange ANSI Class 900, 1,500, For Pipe Size 3/4 in, Inside Diameter 1 in, Outside Diameter 2 7/8 in, Thickness 1/4 in, Rim Stripe Color Gray, Outer Ring Material Carbon Steel, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Stainless Steel Grade Not Applicable, Standards ASME B16.20, ASME/ANSI, System of Measurement Inch
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.80
- Package Width: 2.80
- Package Height: 0.20
- Package Weight: 0.15
Product info last updated on February 20, 2026 5:04pm UTC
Category: Sealing and Gasketing
