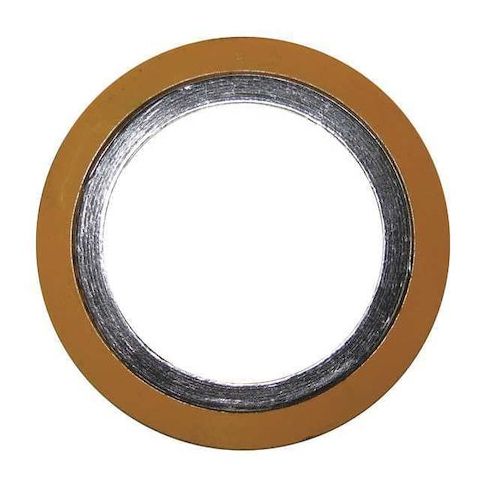

Metal Gasket, 2-9/64in. In, 3-25/64in. Out MPN:0150010008
Metal Gasket, 2-9/64in. In, 3-25/64in. Out
This metal gasket is designed for use with ANSI Class 150 flanges on 1 1/2 inch pipes, providing a secure seal in high-temperature applications. The spiral wound construction features a graphite filler and stainless steel winding for durability and resistance to corrosion. The gasket's temperature range spans from -320°F to 842°F, making it suitable for use in extreme environments. Its compact size and customizable dimensions make it ideal for use in a variety of industries, including oil and gas, chemical processing, and power generation, where reliable sealing is critical to maintaining equipment performance and safety.
Top product features:
- Spiral winding provides a tight seal against pipe flanges
- Graphite filler material helps to reduce friction and improve sealing performance
- Carbon steel outer ring provides durability and resistance to corrosion
Top product applications:
- Pipe Flange Gasket for ANSI Class 150
- High-Temperature Pipe Flange Sealing
- Low-Temperature Pipe Flange Gasketing
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 1 1/2 in, Inside Diameter 2 3/16 in, Outside Diameter 3 7/16 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Yellow, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material None
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 7.61
- Package Width: 7.43
- Package Height: 1.00
- Package Weight: 1.21
Product info last updated on January 14, 2026 7:10pm UTC
Category: Sealing and Gasketing
