Metal Gasket, 20-45/64 in. In MPN:02000100008
Metal Gasket, 20-45/64 in. In

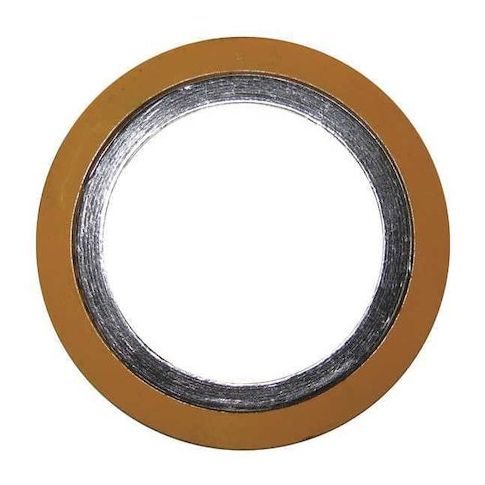

This metal gasket is designed for use with ANSI Class 150 flanges and 20-inch pipes, providing a reliable seal in high-temperature applications. The spiral wound construction and stainless steel winding ensure durability and resistance to corrosion. The gasket's operating temperature range of -320°F to 842°F makes it suitable for use in extreme environments. Its graphite filler and carbon steel outer ring provide additional sealing and structural support. This gasket is ideal for use in industries such as oil and gas, chemical processing, and power generation, where high-performance sealing is critical.
Top product features:
- Spiral winding provides increased sealing pressure and resistance to fluid pressure.
- Graphite filler material offers high thermal conductivity and resistance to high temperatures.
- Carbon steel outer ring provides durability and resistance to corrosion.
Top product applications:
- High-temperature industrial piping systems
- Oil and gas refining equipment
- Power plant equipment
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 20 in, Inside Diameter 20 3/4 in, Outside Diameter 23 7/8 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Yellow, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material None
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on February 27, 2026 3:51am UTC
Category: Sealing and Gasketing
