Metal Gasket, 4-1/2 in. In, 6-1/2 in. Out MPN:035030008
Metal Gasket, 4-1/2 in. In, 6-1/2 in. Out

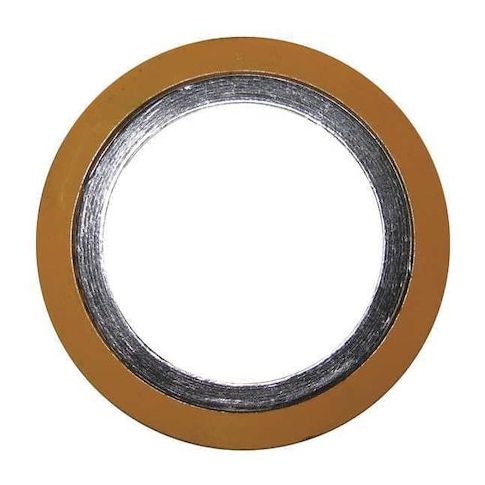

The Metal Gasket from Flexitallic is a high-performance spiral wound flange gasket designed for demanding applications. Its 3/16 inch thickness and 304 stainless steel spiral winding ensure reliable sealing and durability in extreme temperatures, from -320°F to 842°F. Suitable for ANSI Class 300 flanges and 3 1/2 inch pipe sizes, this gasket features a graphite filler and carbon steel outer ring. Its compact size and lightweight design make it ideal for use in industries such as oil and gas, chemical processing, and power generation. With a long lifespan and easy installation, this gasket provides a cost-effective solution for maintaining leak-free connections.
Top product features:
- Spiral winding material provides corrosion resistance and durability.
- Graphite filler material helps to ensure a tight seal and reduce leakage.
- Stainless steel grade 304 spiral winding offers high temperature resistance.
Top product applications:
- Pump Seal Replacement
- High-Temperature Pipe Fittings
- Industrial Valve Sealing
Spiral Wound Flange Gasket, For Flange ANSI Class 300, For Pipe Size 3 1/2 in, Inside Diameter 4 1/2 in, Outside Diameter 6 1/2 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Yellow, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material None
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 16 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.61
- Package Width: 7.43
- Package Height: 0.59
- Package Weight: 1.00
Product info last updated on January 17, 2026 10:18pm UTC
Category: Sealing and Gasketing
