Metal Gasket, 6-9/64 in. In, 7-3/4 in. Out MPN:050010008
Metal Gasket, 6-9/64 in. In, 7-3/4 in. Out

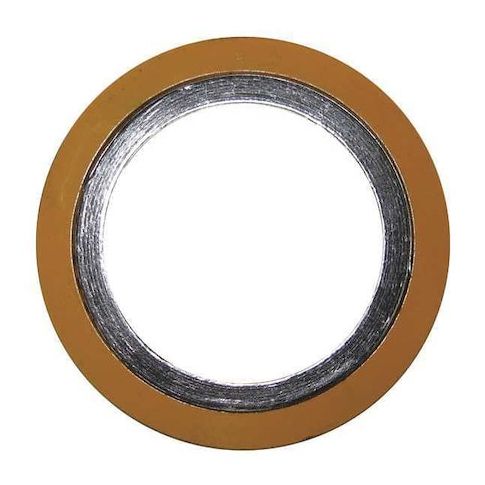

This spiral wound flange gasket is designed for use on ANSI Class 150 flanges with a 5-inch pipe size, providing a secure seal in high-temperature applications. The graphite filler material and stainless steel spiral winding ensure durability and resistance to corrosion, while the carbon steel outer ring provides strength and stability. With a temperature range of -320°F to 842°F, this gasket is suitable for use in a variety of industries, including chemical processing, oil and gas, and power generation. Its compact design and easy installation make it an ideal choice for new equipment or replacement gaskets.
Top product features:
- Spiral winding provides a flexible seal for flange connections
- Graphite filler material enhances sealing performance in high-temperature applications
- Stainless steel spiral winding and Grade 304 material ensure resistance to corrosion and durability
Top product applications:
- Pipe flanges in high-temperature applications
- High-pressure chemical processing equipment
- Oil and gas industry pipeline connections
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 5 in, Inside Diameter 6 3/16 in, Outside Diameter 7 3/4 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Yellow, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material None
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on February 16, 2026 4:55pm UTC
Category: Sealing and Gasketing
