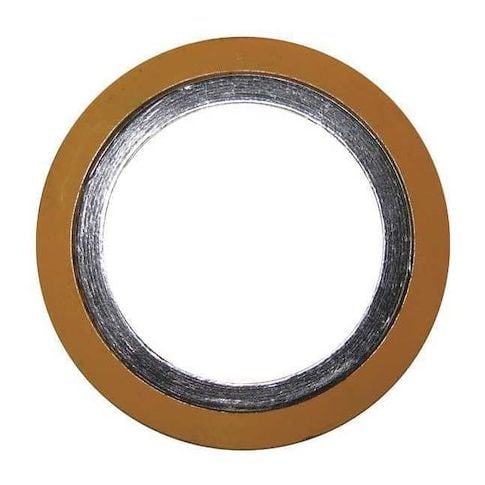

Metal Gasket, 7-13/64in. In, 8-3/4in. Out MPN:060010008
Metal Gasket, 7-13/64in. In, 8-3/4in. Out
This high-performance metal gasket is designed for use with ANSI Class 150 flanges and 6-inch pipes, ensuring a secure and reliable seal in extreme temperatures from -320°F to 842°F. The spiral wound design and stainless steel construction provide exceptional durability and resistance to corrosion, while the graphite filler material enhances sealing performance. Suitable for use in a wide range of industries, including oil and gas, chemical processing, and power generation, this gasket is ideal for applications where high pressure and temperature are present, such as in pipe connections, flange joints, and other critical sealing points.
Top product features:
- Spiral winding provides a flexible seal
- Graphite filler material allows for high-temperature resistance
- Stainless steel spiral winding provides corrosion resistance
Top product applications:
- High-temperature industrial pipe connections
- Low-temperature chemical processing applications
- High-pressure steam system flange gaskets
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 6 in, Inside Diameter 7 1/4 in, Outside Diameter 8 3/4 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Yellow, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material None
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.61
- Package Width: 7.43
- Package Height: 1.00
- Package Weight: 1.21
Product info last updated on April 11, 2026 12:11am UTC
Category: Sealing and Gasketing
