Metal Gasket, 9-13/64 in. In, 11 in. Out MPN:080010008
Metal Gasket, 9-13/64 in. In, 11 in. Out

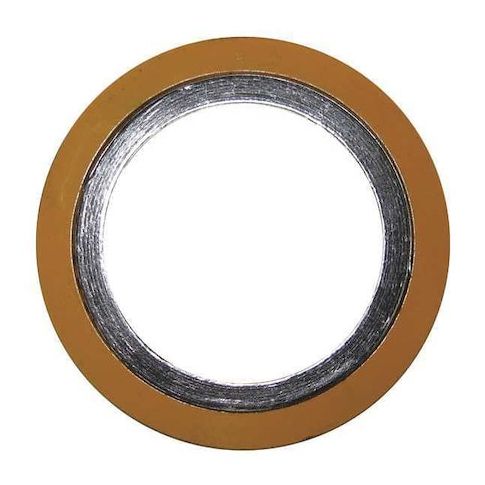

This high-performance spiral wound flange gasket is designed for use with ANSI Class 150 flanges on 8-inch pipes, ensuring a secure and leak-tight seal. Constructed with a durable carbon steel outer ring, stainless steel spiral winding, and graphite filler material, it withstands extreme temperatures from -320°F to 842°F. The gasket's gray and yellow color-coded stripes provide clear identification of the gasket's position and orientation. Ideal for use in industrial, chemical, and oil and gas applications, this gasket provides long-lasting performance and reliability in high-pressure and high-temperature environments.
Top product features:
- Spiral winding provides a tight seal for flanges in high-temperature applications.
- Graphite filler material helps to reduce friction and improve sealing performance.
- Carbon steel outer ring provides durability and resistance to corrosion.
Top product applications:
- High-temperature pipe connections
- Industrial flange gasket applications
- Heavy-duty chemical processing equipment
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 8 in, Inside Diameter 9 1/4 in, Outside Diameter 11 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Yellow, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material None, Inner Ring Stainless Steel Grade Not Applicable
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.61
- Package Width: 7.43
- Package Height: 0.59
- Package Weight: 1.00
Product info last updated on February 5, 2026 10:07pm UTC
Category: Sealing and Gasketing
