Metal Gasket, 10-13/16in. In, 15-3/4in Out MPN:100060008
Metal Gasket, 10-13/16in. In, 15-3/4in Out

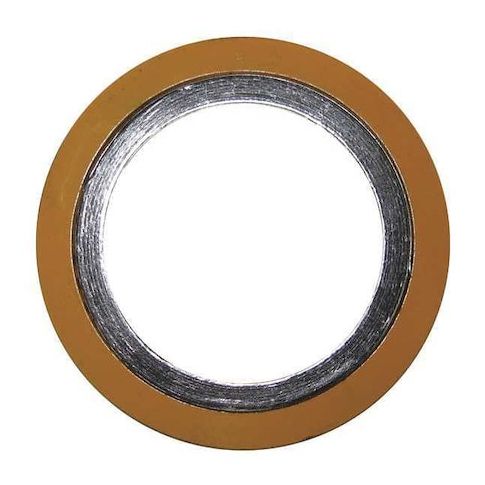

The Metal Gasket from Flexitallic is a high-performance spiral wound flange gasket designed for use in extreme temperature applications. With a maximum operating temperature of 842°F and a minimum operating temperature of -320°F, this gasket is ideal for use in industrial settings where high pressure and temperature fluctuations are common. The graphite filler material and stainless steel spiral winding provide excellent sealing performance and durability, making it suitable for use in applications such as oil and gas refineries, chemical plants, and power generation facilities. Its compact design and easy installation make it a convenient choice for maintenance and repairs.
Top product features:
- Spiral winding provides a flexible and compressible seal
- Graphite filler material offers excellent thermal conductivity and sealing performance
- Stainless steel spiral winding (Grade 304) ensures high temperature resistance and durability
Top product applications:
- High-temperature pipe connections
- Sealing large diameter pipes in chemical processing plants
- Oil and gas industry applications requiring high pressure and temperature resistance
Spiral Wound Flange Gasket, For Flange ANSI Class 600, For Pipe Size 10 in, Inside Diameter 10 13/16 in, Outside Diameter 15 3/4 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Yellow, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material None
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 15.50
- Package Height: 0.15
- Package Weight: 3.00
Product info last updated on February 4, 2026 4:41am UTC
Category: Sealing and Gasketing
