Metal Gasket, 10-1/2in. In, 17-9/64in. Out MPN:100150008
Metal Gasket, 10-1/2in. In, 17-9/64in. Out

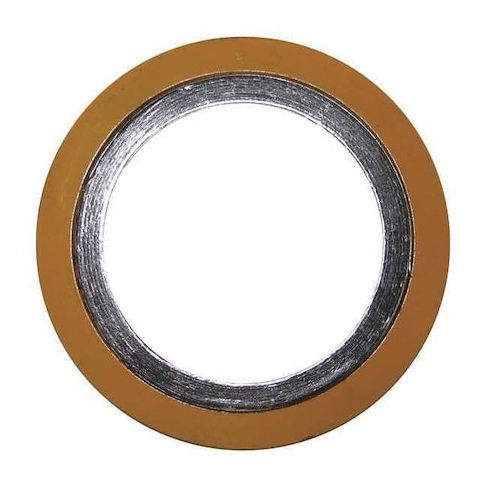

This spiral wound flange gasket is designed for use on ANSI Class 1500 flanges, providing a reliable seal for 10-inch pipes in extreme temperatures. The gasket's stainless steel spiral winding ensures durability and resistance to corrosion, while the carbon steel outer ring provides added strength. Suitable for applications in the oil and gas, chemical, and power generation industries, this gasket can withstand temperatures from -320°F to 842°F. Its compact design and ease of installation make it an ideal choice for new equipment and replacement parts, offering a cost-effective solution for ensuring optimal system performance and safety.
Top product features:
- Spiral winding material is stainless steel grade 304.
- Spiral winding provides a tight seal against pipe flanges.
- Inner ring is made of stainless steel.
Top product applications:
- High-Pressure Chemical Processing
- High-Temperature Power Plant Applications
- Industrial Oil and Gas Refining
Spiral Wound Flange Gasket, For Flange ANSI Class 1,500, For Pipe Size 10 in, Inside Diameter 10 1/2 in, Outside Diameter 17 3/16 in, Thickness 1/4 in, Rim Stripe Color Gray, Outer Ring Material Carbon Steel, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Stainless Steel Grade Not Applicable, Standards ASME B16.20, ASME/ANSI, System of Measurement Inch
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on April 5, 2026 9:44am UTC
Category: Sealing and Gasketing
