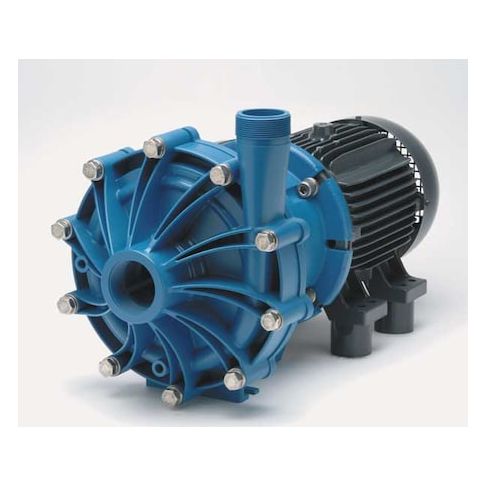

Magnetic Drive Pump, DB22 Series, 10 hp, Polypropylene, 2 in FNPT x 2 in MNPT, 3 Phase MPN:DB22P-3-21-M239
This 10 HP PP Magnetic Drive Pump is a reliable and efficient solution for various industrial applications, particularly in chemical processing and laboratory settings where deionized water is used. Its magnetic drive design ensures leak-free operation and eliminates the risk of contamination. With a maximum flow rate of 202 gpm and a head of up to 201 ft, this pump can handle demanding tasks such as transferring liquids in high-rise facilities or high-volume production environments. Its compact size and ease of installation make it an ideal choice for a wide range of applications, including chemical processing, laboratory, and water treatment plants.
Top product features:
- Magnetic drive design for chemical compatibility with deionized water
- Maximum flow rate of 202 gpm at various head pressures
- 10 horsepower for high-pressure pumping capabilities
Top product applications:
- Chemical processing
- Water treatment plants
- Power plants
The Finish Thompson DB22 series magnetic drive centrifugal pump is a 10 hp, three-phase (208-230/460V) unit with a polypropylene housing and impeller and a Viton gasket. It is designed for handling acids, caustics, deionized water and plating solutions, and is driven by a totally enclosed fan cooled (TEFC) induction motor mounted horizontally with a maximum speed of 3,450 RPM. Performance specifications include a nominal flow of 202 gpm across multiple head points and a listed maximum head of 158 ft
- operating pressure is 68 psi and maximum media temperature is 180°F.
Key Features:
- - Item/Design: Magnetic Drive Pump, centrifugal, DB22 series
- - Power/Voltage: 10 hp
- nameplate voltage 208-230/460V AC
- three phase
- - Current: Full load current 25.9–23.4/11.7 A
- - Flow/Head: 202 gpm (recorded at 3, 6, 9, 15, 18, 24, 40 and 50 ft of head)
- max head 158 ft
- - Ports: 2 in inlet FNPT
- 2 in outlet MNPT (discharge)
- - Materials: Polypropylene housing and impeller
- Viton gasket
- - Motor: Induction motor, TEFC enclosure, horizontal mounting, max 3,450 RPM
- - Operating limits: Maximum media temperature 180°F
- maximum viscosity 100 cps
- operating pressure 68 psi
- maximum specific gravity 1.2
- - Mechanical: Radial and thrust bearings
- manual priming
- horizontal mounting orientation
- - Dimensions/Warranty: Overall length 28.5 in, width 14.3 in, height 13.4 in
- 5 year manufacturer’s warranty
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 40.80
- Package Width: 19.60
- Package Height: 16.80
- Package Weight: 250.00
