3 HP PVDF Magnetic Drive Pump 208-230/460V 2" FNPT MPN:DB15V-2-T-M209

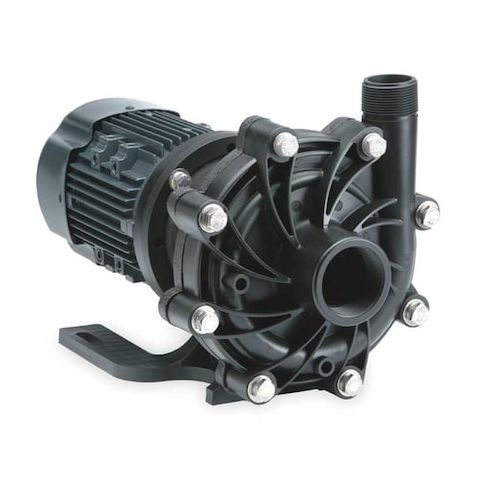

3 HP PVDF Magnetic Drive Pump 208-230/460V 2" FNPT
This 3 HP PVDF Magnetic Drive Pump is ideal for applications requiring chemical compatibility, such as deionized water circulation in laboratories, breweries, and pharmaceutical facilities. The pump's magnetic drive design eliminates the risk of leaks and contamination, while its PVDF construction ensures resistance to corrosion and damage from harsh chemicals. With a maximum flow rate of 128 gpm and a head of up to 98 ft, this pump is suitable for a variety of applications, including cooling systems, process water circulation, and wastewater treatment. Its compact design and easy installation make it a reliable choice for industrial and commercial use.
Top product features:
- Magnetic drive design allows for chemical compatibility and minimizes risk of contamination.
- Deionized water compatibility makes it suitable for applications requiring high purity.
- Maximum flow rate of 128 gpm at various head pressures enables efficient transfer of fluids.
Top product applications:
- Laboratory chemical transfer
- Chemical processing and transfer in a pharmaceutical manufacturing facility
- Chemical dosing and transfer in a wastewater treatment plant
Magnetic Drive Pump, Chemical Compatibility Deionized Water, Discharge Pipe Size 1 1/2 in, Discharge Pipe Type MNPT, Feet of Head (Maximum) 98 ft, Flow Rate @ 3 ft of Head (Maximum) 128 gpm, Flow Rate @ 6 ft of Head (Maximum) 128 gpm, Flow Rate @ 9 ft of Head (Maximum) 128 gpm, Flow Rate @ 15 ft of Head (Maximum) 128 gpm, Flow Rate @ 24 ft of Head (Maximum) 128 gpm, Flow Rate @ 50 ft of Head (Maximum) 120 gpm, Horsepower (Maximum) 3 hp, Intake Pipe Size 2 in, Intake Pipe Type FNPT
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 14.00
- Package Height: 14.50
- Package Weight: 75.25
Product info last updated on March 13, 2026 7:49pm UTC
Category: Centrifugal Pumps
