Federal Signal 350WBX-120 120VAC Hazardous Location Horn Weatherproof Backbox 350WBX-120

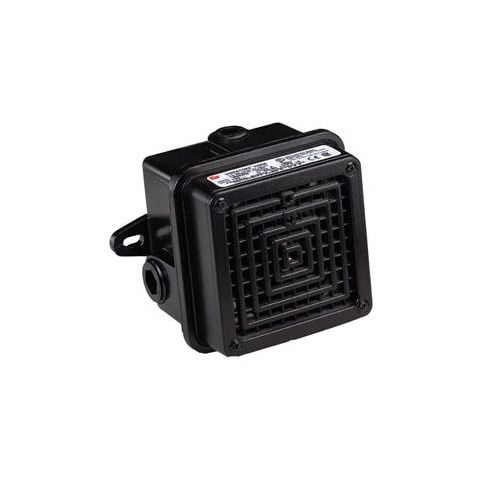

Model 350wbx (ac current) vibratone® horn produces sound by the electro-mechanical vibration of a stainless steel diaphragm. The horn mechanism with diaphragm is attached to the grille. The water- and dust-tight backbox is ideal for indoor or outdoor use. The model 350wbx is available in 120 or 240vac for 50/60hz. Its sound output level is 100dba nominal at ten feet (110dba 1 meter). This hazardous location horn accommodates surface flush or semi-flush mounting on walls panels and in cabinets. The model 350wbx features a die-cast zinc housing with a corrosion-resistant polyurethane finish. The rugged outer grille resists vandalism without reducing sound output. The 350wbx is fused and utilizes a terminal block connection. The 350wbx is approved for class i division 2 groups a b c and d; class ii division 2 groups f and g; and class iii. Capable of producing coded blasts or sustained tones federal signal's vibratone horns are excellent for general alarm start/dismissal coded paging and process control signaling in areas where their sound output exceeds ambient noise levels. Compact size and a variety of installation options make them ideal for institutional use. Ul and cul listed csa certified. 5 year limited warranty.
