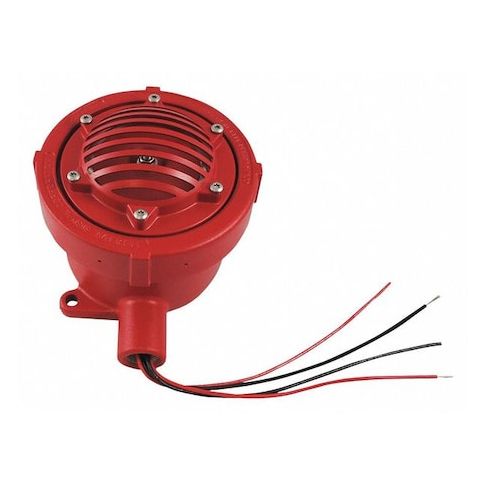

Vibrating Horn, Horn, 24V DC, 99 dB, Die Cast Aluminum, Red, Conduit Mount MPN:FHEX-24SMR
Free Shipping
In Stock
The Federal Signal Vibrating Horn is a high-performance audible alarm solution designed for indoor and outdoor applications. Its 99 dB decibel rating ensures maximum attention-grabbing capability, while its die-cast aluminum housing provides durability and resistance to harsh environments. Suitable for use in commercial, industrial, and residential settings, this horn is ideal for emergency response systems, security systems, and warning systems. Its NEMA 4X rating and operating temperature range of -31°F to 150°F make it a reliable choice for extreme conditions. The horn's four-wire design and supervisory diode feature ensure easy installation and maintenance.
Top product features:
- Die Cast Aluminum Housing
- Supervisory Diode
- 99 dB Audible Alarm
Top product applications:
- Emergency Vehicle Sirens
- Industrial Alarm Systems
- Construction Site Warning Systems
Federal Signal FHEX-24SMR is a vibrating audible horn configured for direct-wire operation on 24V DC systems. It provides a horn-style alarm output rated at 99 dBA at 10 ft and up to 109 dBA at 1 m. It includes a die-cast aluminum housing, conduit mount design, and indoor/outdoor rating for audible signaling applications.
Key Features:
- Audible horn with vibrating sound principle
- Sound output: 99 dBA at 10 ft
- 109 dBA at 1 m
- Operating voltage: 24V DC
- Current draw: 1.2 A
- Conduit mount
- Die-cast aluminum housing, red
- Indoor/outdoor rated
- Protection ratings: NEMA 4X, IP66
- Hazardous location rating: Class I, Division 1
- Class II, Division 1
- Supervisory diode and four-wire configuration
- Operating temperature: -31°F to 150°F
- Overall size: 6-1/2 in. dia. x 7-5/8 in. L
- Listings: cUL Listed, UL Listed, CSFM
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 31 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 11.50
- Package Height: 9.88
- Package Weight: 10.30
