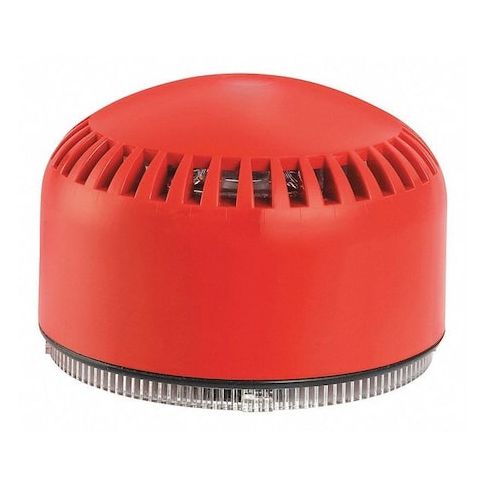

Electronic Sounder, Siren, Continuous, 12 to 24V AC/DC, 120 to 240V AC, 55 to 95dB, 65 to 105dB MPN:SLM700R
Free Shipping
In Stock
The Federal Signal Electronic Sounder is a versatile and reliable audible alarm system designed for indoor and outdoor use. Its continuous sound pattern and adjustable decibel range of 55-95dB and 65-105dB ensure maximum alertness and attention. Ideal for various applications, including industrial, commercial, and residential settings, this sounder is also suitable for emergency response systems, security systems, and warning systems. Its compact size and robust construction make it easy to install and maintain, while its polycarbonate housing and IP 65 rating ensure durability and resistance to harsh environments.
Top product features:
- Operates at a continuous sound pattern
- Produces sound levels of 55 to 95dB and 65 to 105dB
- Has an operating temperature range of -22 to 122 Degrees F
Top product applications:
- Construction sites to alert workers of potential hazards
- Industrial facilities to signal emergency situations
- Marine vessels to alert personnel of critical situations
Federal Signal SLM700R is an electronic sounder module with an audible siren output for alarm and warning notification. It provides continuous sound operation with 32 sound patterns and two tones at three adjustable tone levels. The unit is rated for 12 to 24V AC/DC and 120 to 240V AC operation, with IP65 and NEMA 3R ratings for indoor and outdoor signaling system installations.
Key Features:
- Alarm Type: Audible siren with no visual indicator.
- Sound Output: 55 to 95 dB and 65 to 105 dB
- maximum output is 105 dBA at 1 m and 95 dBA at 10 ft.
- Sound Pattern: Continuous sound operation with 32 sound patterns.
- Adjustability: Two tones at three adjustable tone levels.
- Voltage: 12 to 24V AC/DC, 120 to 240V AC.
- Current Draw: 35 to 240 mA
- operating current includes 0.060 A at 24V DC, 0.085 A at 12V DC, 0.090 A at 240V AC, 0.125 A at 120V AC, 0.190 A at 24V AC, and 0.280 A at 12V AC.
- Construction: Red polycarbonate housing.
- Mounting: Surface and conduit mounting.
- Protection Ratings: IP65 and NEMA 3R.
- Operating Temperature: -40°F to 131°F.
- Standards: CE, cUL Listed, UL Listed.
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 3.80
- Package Height: 3.00
- Package Weight: 0.47
