Bell, Bell, Continuous, 120V AC, 100 dB, Industrial Grade/Powder-Coat Paint, Gray, Outlet Box Mount MPN:506-120-1
Free Shipping
In Stock
Federal Signal's industrial-grade audible alarm is designed for indoor and outdoor use, providing a continuous 100 dB sound to grab attention. The unit is powered by 120V AC and features a vibrating option to increase visibility. Constructed with durable industrial-grade powder-coat paint, it withstands temperatures from -31°F to 150°F. Suitable for various applications, including industrial facilities, construction sites, and schools, this alarm is CSA certified and cUL listed for safety and reliability. Its compact design fits easily into an outlet box, making it a versatile solution for demanding environments.
Top product features:
- Vibrating Yes
- Sound Pattern Continuous
- Housing Material Industrial Grade/Powder-Coat Paint
Top product applications:
- Factory alarm system
- Industrial facility warning device
- Construction site warning bell

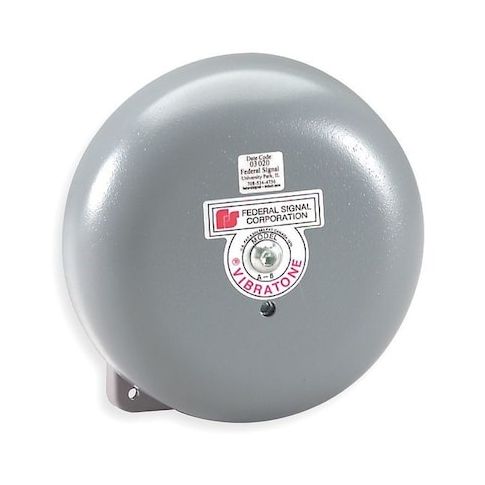

FEDERAL SIGNAL 506-120-1 is a direct-wire vibrating bell for audible signaling in indoor and outdoor locations. It operates on 120V AC and produces a continuous bell sound rated at 100 dB, with maximum sound levels of 110 dBA at 1 m and 100 dBA at 10 ft. The gray unit mounts to an outlet box and includes tempered Vibratone gongs for audible signaling.
Key Features:
- Audible alarm type: Bell with continuous sound pattern
- Sound output: 100 dB
- maximum 110 dBA at 1 m and 100 dBA at 10 ft
- Operating voltage: 120V AC
- Current draw: 0.08 AC
- operating current 0.080 A
- Mounting: Outlet box mount
- Power source and control: Direct wire
- Use location: Indoor and outdoor
- Rating: NEMA 3R
- Visual indicator type: None
- Operating temperature range: -31 to 150 degrees F
- Overall size: 5 3/8 in. diameter, 5 1/16 in. overall depth, 5 5/8 in. overall width, 6 in. overall length/height
- Standards: CSA Certified, cUL Listed, UL Listed
- Color: Gray
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.30
- Package Width: 6.10
- Package Height: 7.60
- Package Weight: 2.50
