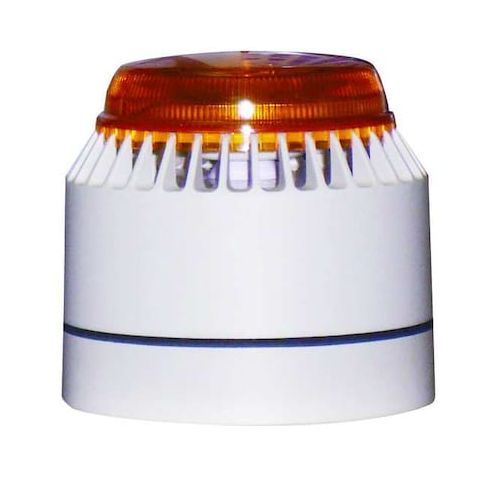

Horn Strobe, Siren, Continuous, 18 to 28V DC, 82 to 100dB at 10 ft, ABS, Plastic, White/Amber MPN:LP7-18-30A

• FEDERAL SIGNAL LP7-18-30A is a horn strobe that combines a siren-style audible signal with an amber xenon strobe in one surface-mount unit. It operates on 18 to 28V DC and provides continuous sound output with selectable volume for audible and visual warning indication in indoor locations.

  Key Features:

  • Audible alarm type: Siren with continuous sound pattern.
  • Sound output: 82 to 100 dBA at 10 ft
  • 92 to 110 dBA at 1 m.
  • Visual indicator type: Amber strobe with xenon light source and strobe tube lens design.
  • Flash rate: 60 flashes per minute.
  • Flash energy: 0.7 joules.
  • Operating voltage: 18 to 28V DC.
  • Current draw: 0.068 A.
  • Mounting style: Surface mount.
  • Housing material: ABS plastic with white housing and amber lens.
  • Ratings: IP54, IP65, NEMA 4X.
  • Operating temperature: 14 to 131 degrees F.
  • Rated lamp life: 10,000 hr.
  • Standards: CE.
