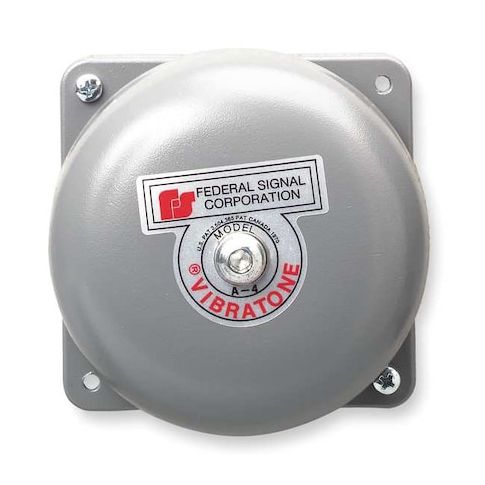

Bell, Bell, Continuous, 120V AC, 98 dB, Industrial Grade/Powder-Coat Paint, Gray, Outlet Box Mount MPN:504-120-1
Free Shipping
In Stock
This industrial-grade audible alarm bell is designed for indoor and outdoor use, featuring a continuous 98 dB sound pattern and a durable powder-coat paint finish. The bell's vibrating mechanism and tempered gongs ensure superior output and long-lasting durability, making it an ideal choice for industrial settings, construction sites, and emergency response applications. Its compact design and outlet box mounting make it easy to install and integrate with existing systems. With CSA certification and a wide operating temperature range, this bell is a reliable and efficient solution for alerting personnel and warning of potential hazards.
Top product features:
- Vibrates to produce a superior output
- Produces a sound pattern of continuous sound
- Tempered to produce long-lasting durability
Top product applications:
- Factory alarm system
- Construction site warning device
- Industrial equipment alert system
FEDERAL SIGNAL 504-120-1 is a direct-wire industrial alarm bell with a continuous bell sound and 120V AC operation. It is rated for indoor and outdoor use and mounts to an outlet box. The vibrating bell design produces an audible signal rated at 98 dBA at 10 ft and up to 108 dBA at 1 m for audible warning applications where an audible-only device is specified.
Key Features:
- Audible alarm type: Bell
- Sound style: Bell
- Sound pattern: Continuous
- Sound output: 98 dBA at 10 ft maximum
- 108 dBA at 1 m maximum
- Operating voltage: 120V AC
- Current draw: 0.080 A AC
- Control protocol: Direct wire
- Mounting: Outlet box
- Use rating: Indoor/Outdoor
- NEMA rating: NEMA 3R
- Housing: powder-coat painted housing
- gray
- Operating temperature: -31°F to 150°F
- Overall size: 5 5/8 in. diameter x 4 23/32 in. depth
- Visual indicator type: None
- Standards: CSA Certified, cUL Listed, UL Listed
- Feature: Vibratone gongs are tempered
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 2.80
- Package Height: 4.50
- Package Weight: 1.50
