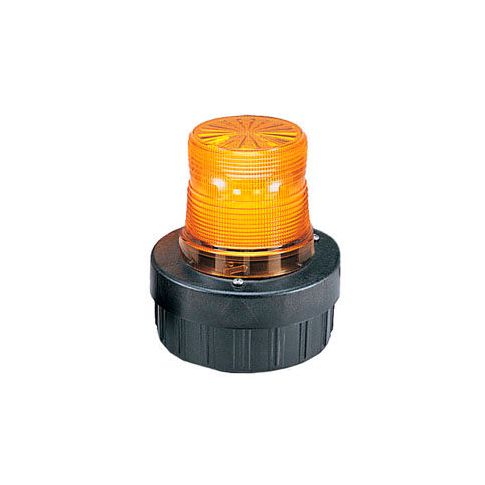

Federal Signal AV1-LED-024A combination audible/visual signal flashing 24VDC Amber AV1-LED-024A

Federal signal av1-led-024a combination audible/visual signal flashing 24vdc amber federal signal introduces the model av1led combination audible/visual signal. The av1-led features a 100 polycarbonate housing that is rated for type 3r rain-tight applications. Dome comes in amber. The av1-led design provides three mounting configurations. The black base will accommodate mounting to a 1/2-inch npt pipe a 4-inch octagonal electrical box or any flat surface. The surface mount gasket serves as a template for preparing a flat surface with appropriate mounting holes. All av1-led units feature a unique twist and lock dome to allow for tool-free access to the led. The fresnel lensing provides superior visibility in all directions. The integrated buzzer provides 85db output at 10 feet (95db 1 meter). The unit is capable of independent flashing light and sounder operation. The led can be field adjusted to two flash patterns 60 fpm or 75 fpm via a jumper on the pc board. The av1-led comes in two voltage variations 24vdc and 120vac. Each unit is factory assembled with two color-coded leads. If desired the user can remove the leads and connect directly to the terminal block located in the base of the unit. The av1-led is ul and cul listed and csa certified. 5 year limited warranty.
