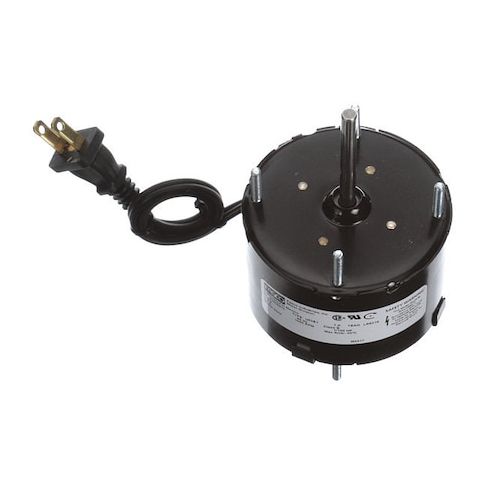

HVAC Motor, TEAO, 1/100 HP, 1550 rpm, Stud MPN:D540
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7525314
HVAC Motor, TEAO, 1/100 HP, 1550 rpm, Stud
This 1/100 HP HVAC motor is a reliable replacement for your existing equipment, designed for single-phase operation with a shaded pole design. Suitable for use in a wide range of applications, including residential and commercial heating and cooling systems, this motor delivers efficient performance at 115V AC with a maximum ambient temperature of 40°C. Its compact design and totally enclosed air-over enclosure ensure safe and quiet operation, making it an ideal choice for applications where space is limited. With a lead time of just one day and a minimum order quantity of one, this motor is available for immediate delivery.
Top product features:
- Totally Enclosed Air-Over motor design provides protection from dust and debris
- Shaded Pole motor design provides a low-cost, low-maintenance solution
- Motor thermal protection auto feature provides automatic shutdown in case of overheating
Top product applications:
- HVAC systems for residential use
- Commercial air conditioning units
- Package air conditioning units for RVs and trailers
OEM Replacement Motor, Single Phase, Motor Design Shaded Pole, 1/100 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 0.60 A Full Load Amps, 3.3 Frame, Output Watts 10 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.38
- Package Width: 3.75
- Package Height: 4.12
- Package Weight: 2.33
Product info last updated on January 30, 2026 6:24am UTC
Category: Motors
