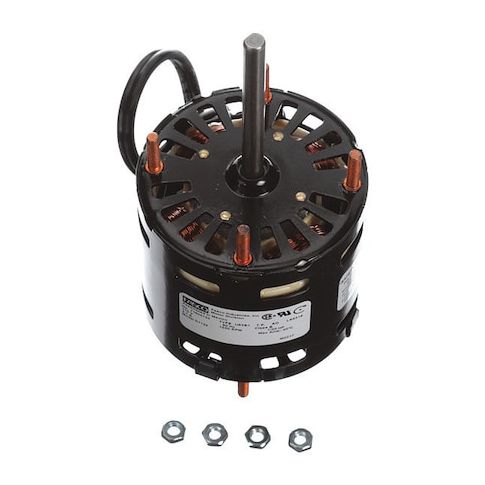

HVAC Motor, Open Air-Over, 1/20 HP, 1, 550 Nameplate RPM, 1 Speed, 115V AC, Stud Mount, CWSE, B MPN:D1124

• The FASCO - D1124 is an OEM Replacement Motor, specifically designed to replace the original motor in a machine or system. This replacement motor ensures exact fit and functionality as the original part, providing seamless integration into existing systems.


  Key Features:


  • Motor Mounting Type: Ring/Stud, offering diverse solutions for different industrial requirements.

  • Motor Application: Primarily designed to function in HVAC/R systems.

  • Nameplate RPM: Can operate at a maximum speed of 1550 RPM as specified by the manufacturer

  • Voltage & Compatibility Range: Requires electrical input of 115V AC

• compatible with ranges from 115/208 -230V AC, up to120/240V AC

  • Motor Bearings: Uses Sleeve type bearings that reduce friction between moving parts enhancing operational efficiency

  • Motor Enclosure Design: Open Air Over design provides better cooling but less protection against dust and moisture

  • Motor Design: Shaded Pole electric motor influences performance and operational costs

  • Full Load Amps: Draws maximum current of 2.1 A when operating at full capacity.

  • Thermal Protection Feature: Auto thermal protection prevents overheating by automatically shutting down when excessive heat is detected

  • Ambient Temperature Tolerance: Functions optimally up to Max Ambient Temp.:40 Degrees C

  • Complies with CSA Certified, UL Recognized standards ensuring quality and safety

  • Motor Frame Material: Constructed from Steel for durability and protection against harsh industrial environments.
